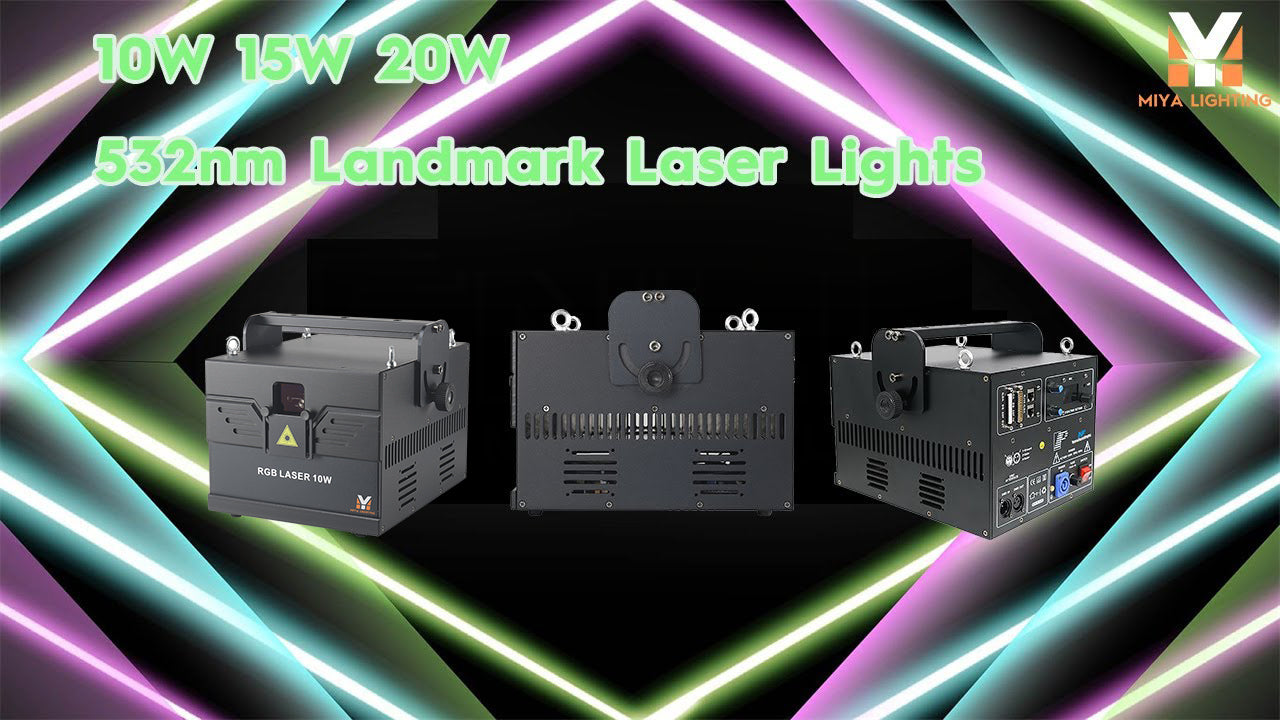

10W 20W RGB Animation Laser Lights for DJ & Bar Events

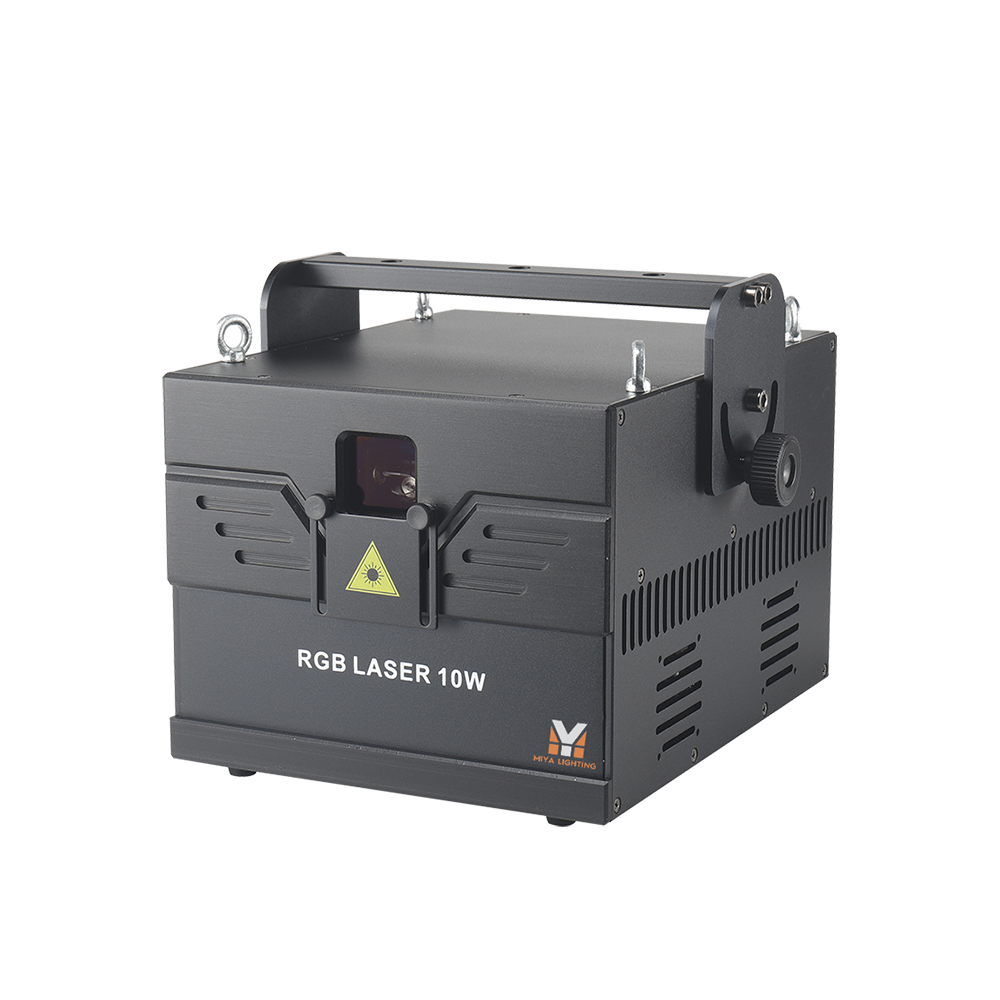

The M760 laser animation projector delivers 10W–20W RGB output, smooth 30K–40KPPS scanning, and flexible ILDA/DMX control. It's ideal for clubs, theaters, and professional indoor laser shows.
Learn more
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
AC110/220V, 50-60Hz ± 10%
max 500W
RGB 10-20W
Red 638±5nm, Green 520±5nm, Blue 455±5nm
<1.3 mrad
30-40 KPPS high-speed scanning
international standard ILDA control/DMX512 signal control/self-walk/ voice control/master-slave
Analog or TTL modulation
Imported semiconductor solid-state laser
Max 7 mm
ILDA control, international DXM512 , can connect with American Pangolin laser software and Tiger, Pearl, MA controller, etc.
One-beam protection, auto shutoff when signal lost
IP20
carton case
31*25*21 CM
10.9 KG
44x40x38 cm
13 kg
52x41x40 cm
19kg
Video
PRODUCT DETAILS/FEATURES
Product Advantages
Product Overview

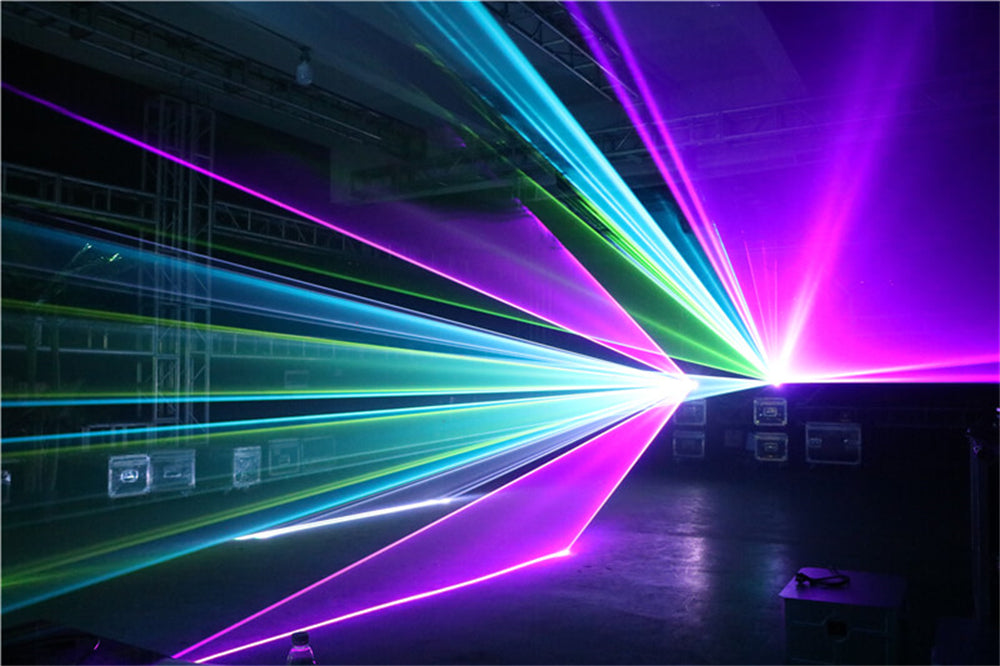

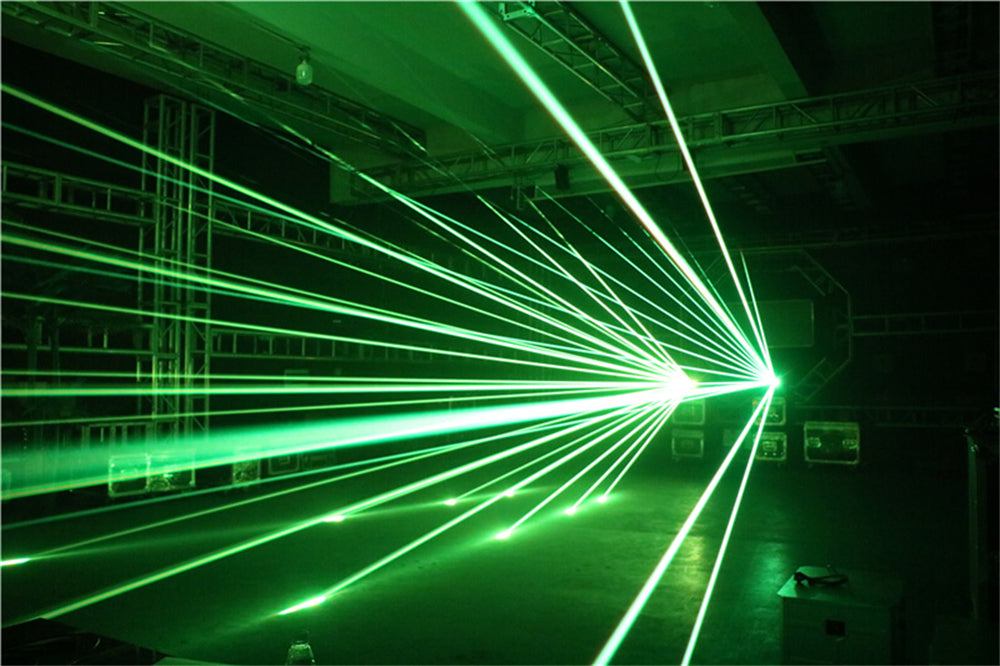

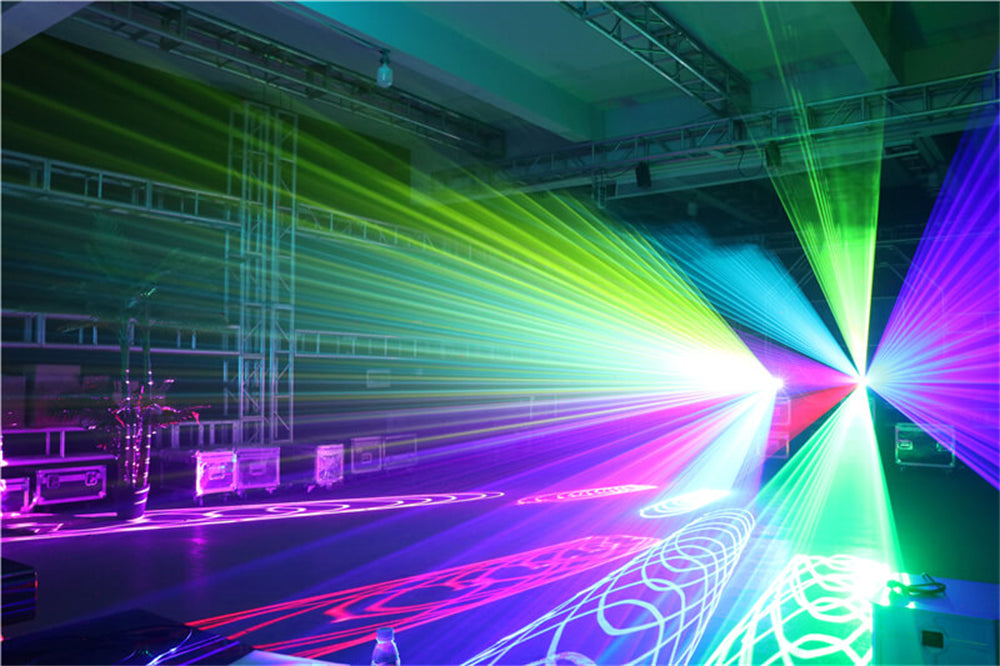

Scene Display
FAQ
1. What types of shows is the MIYA M760 best suited for?
The MIYA M760 laser animation projector is designed for clubs, theaters, concert venues, exhibitions, and medium to large indoor productions. Its bright RGB output and smooth laser animation make it ideal for creating professional visual experiences.

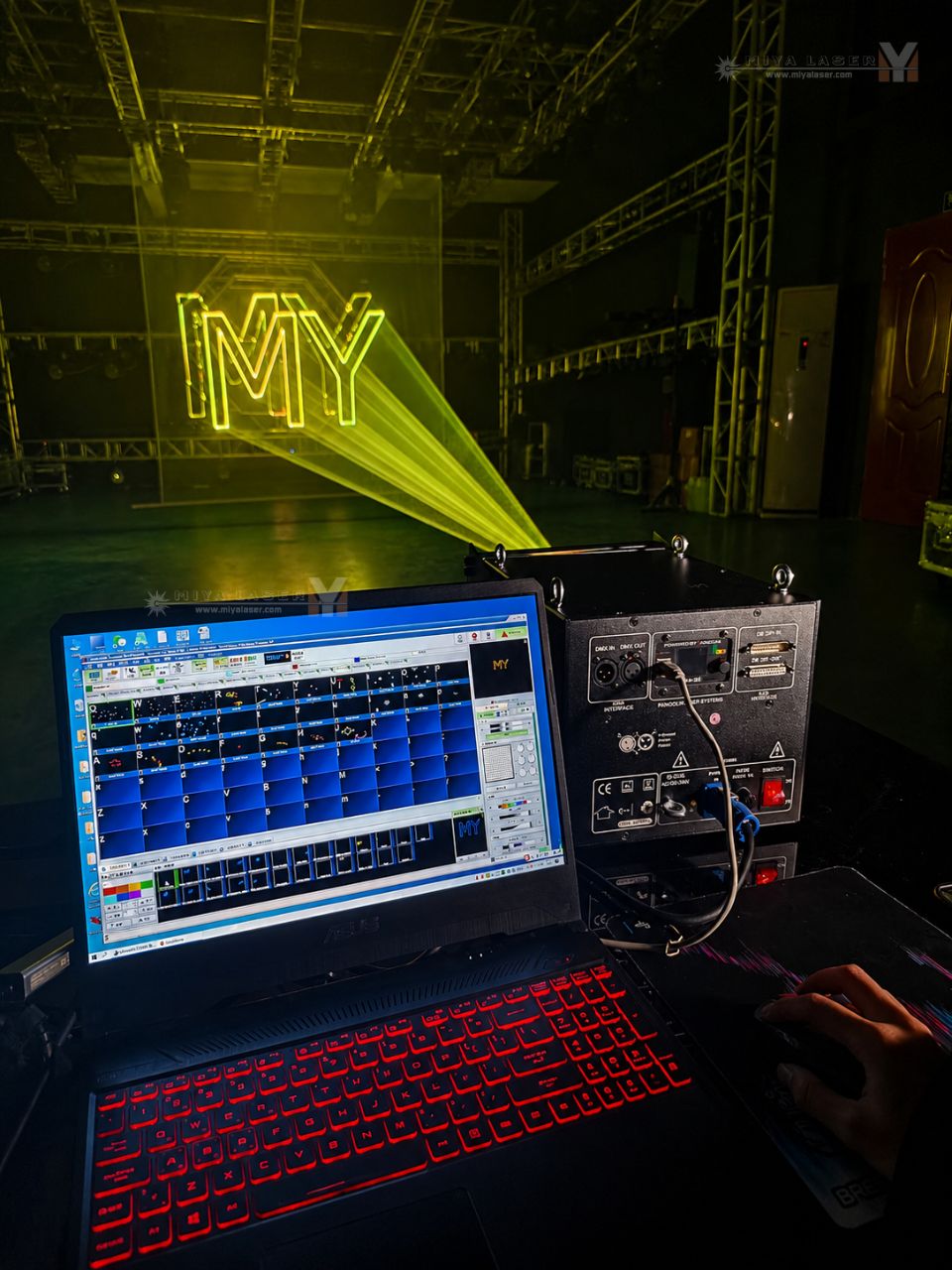

2. What control options does the M760 support?
The ILDA laser projector supports ILDA, DMX512, Auto Run, Sound Active, and Master-Slave modes. It also works with Pangolin, MA, Tiger, and Pearl controllers, giving you the flexibility to run simple shows or fully programmed programmable laser light show projector productions.
3. What makes the M760 different from standard laser projectors?

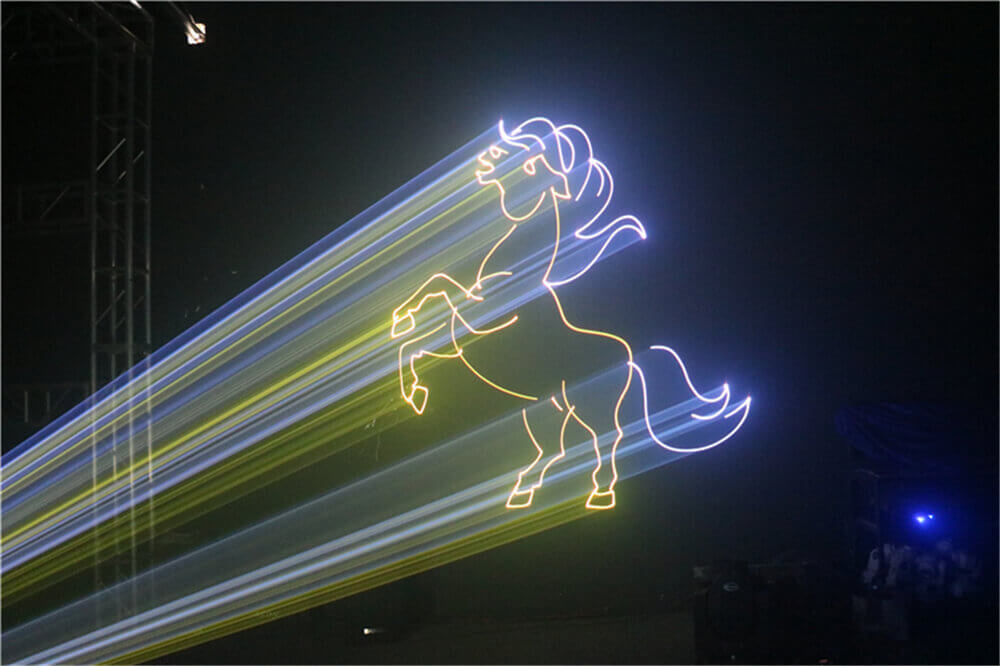

The M760 features a 30K–40KPPS scanning system, allowing it to produce smoother laser graphics, cleaner text, and more detailed animated laser beam effects. Available in 10W, 15W, and 20W versions, it provides the brightness and precision needed for professional installations.
4. Is the M760 easy to integrate into an existing lighting system?

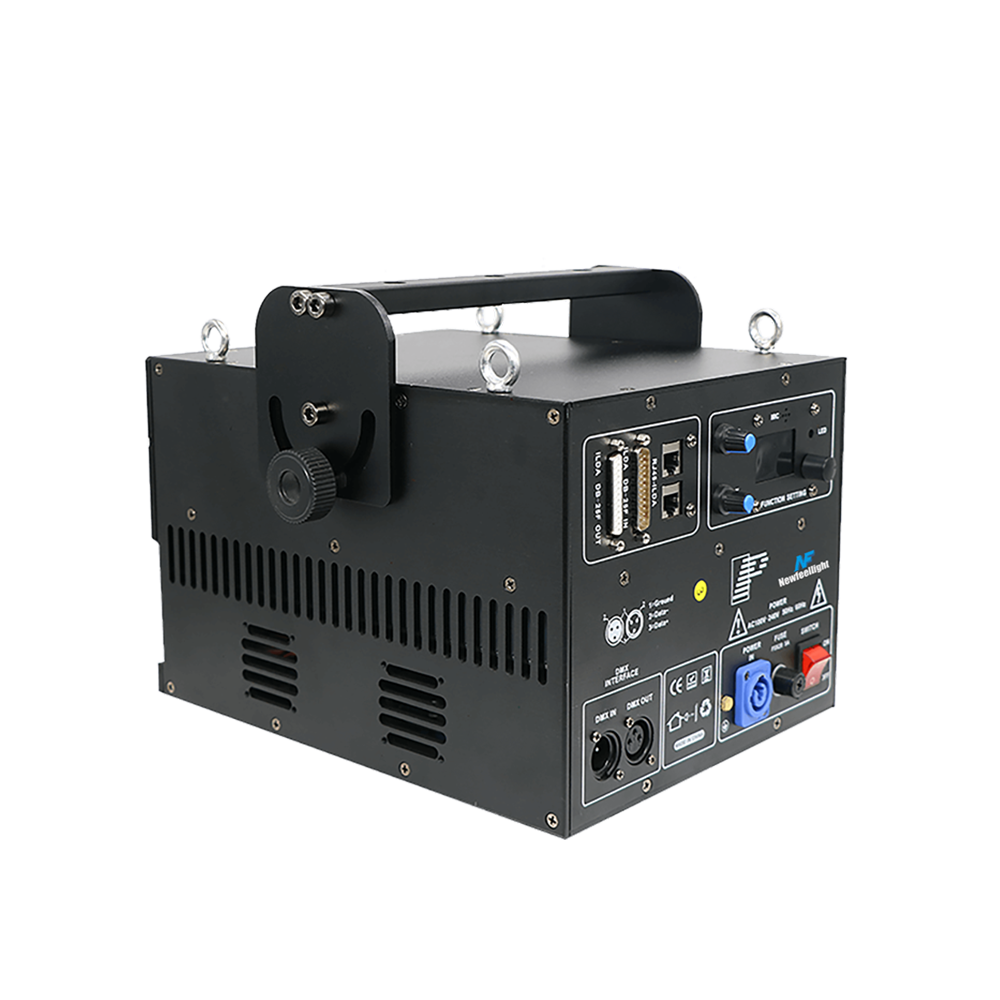

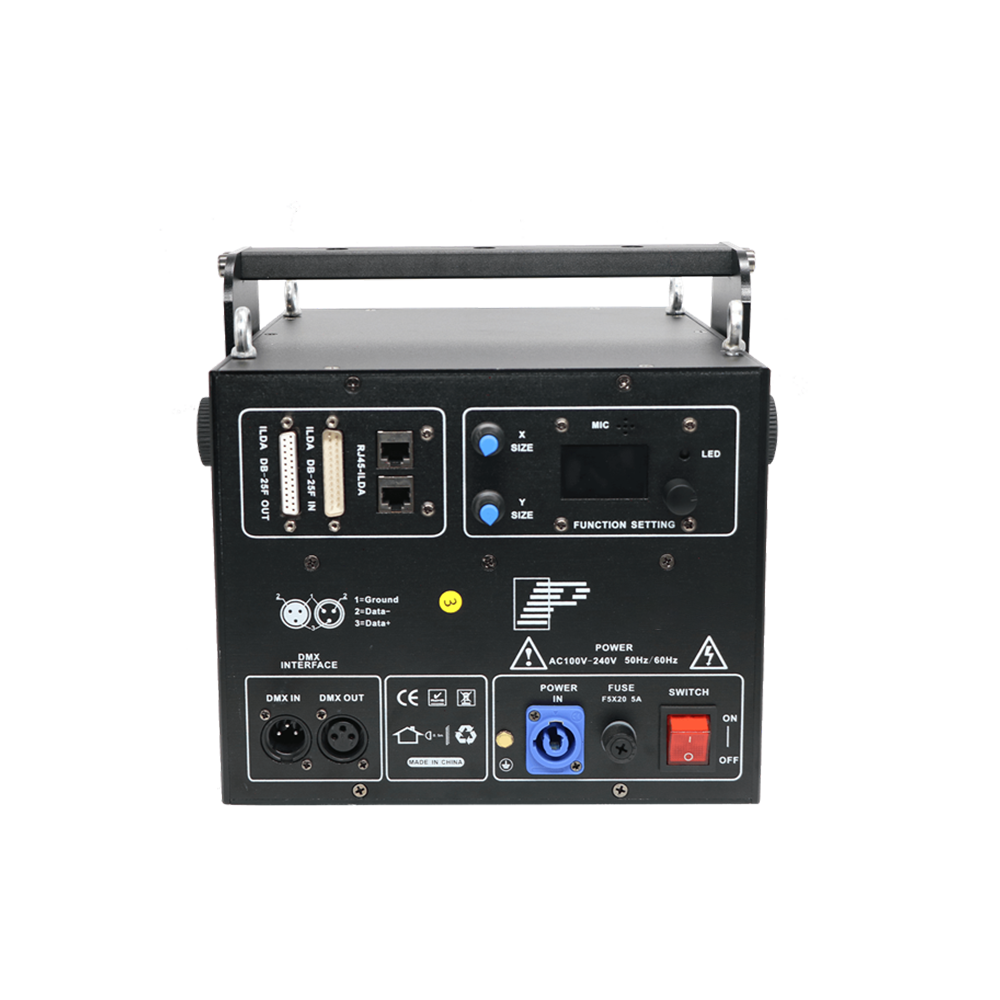

Yes. The animation laser projector uses standard ILDA DB25 and DMX512 connections, making it compatible with most professional lighting systems. Its compact design, built-in safety protection, and reliable cooling make installation straightforward for both permanent venues and touring productions.
