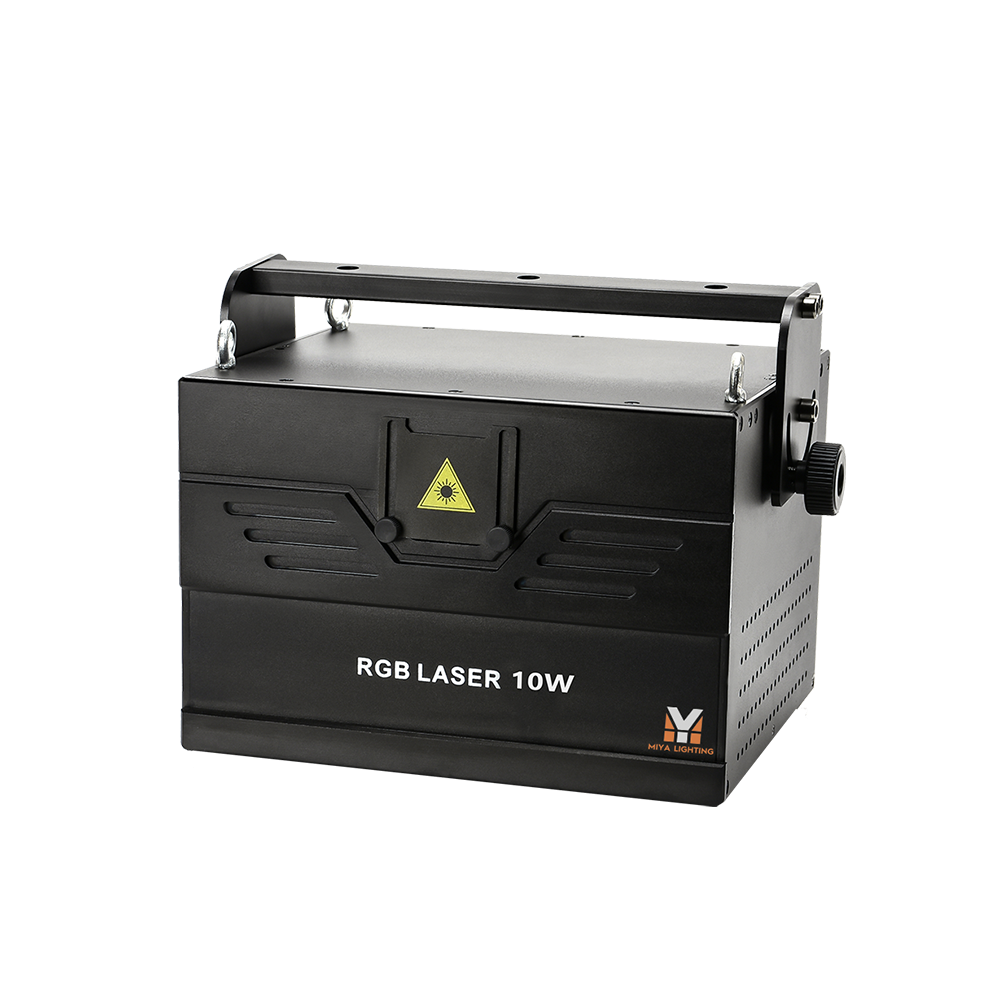

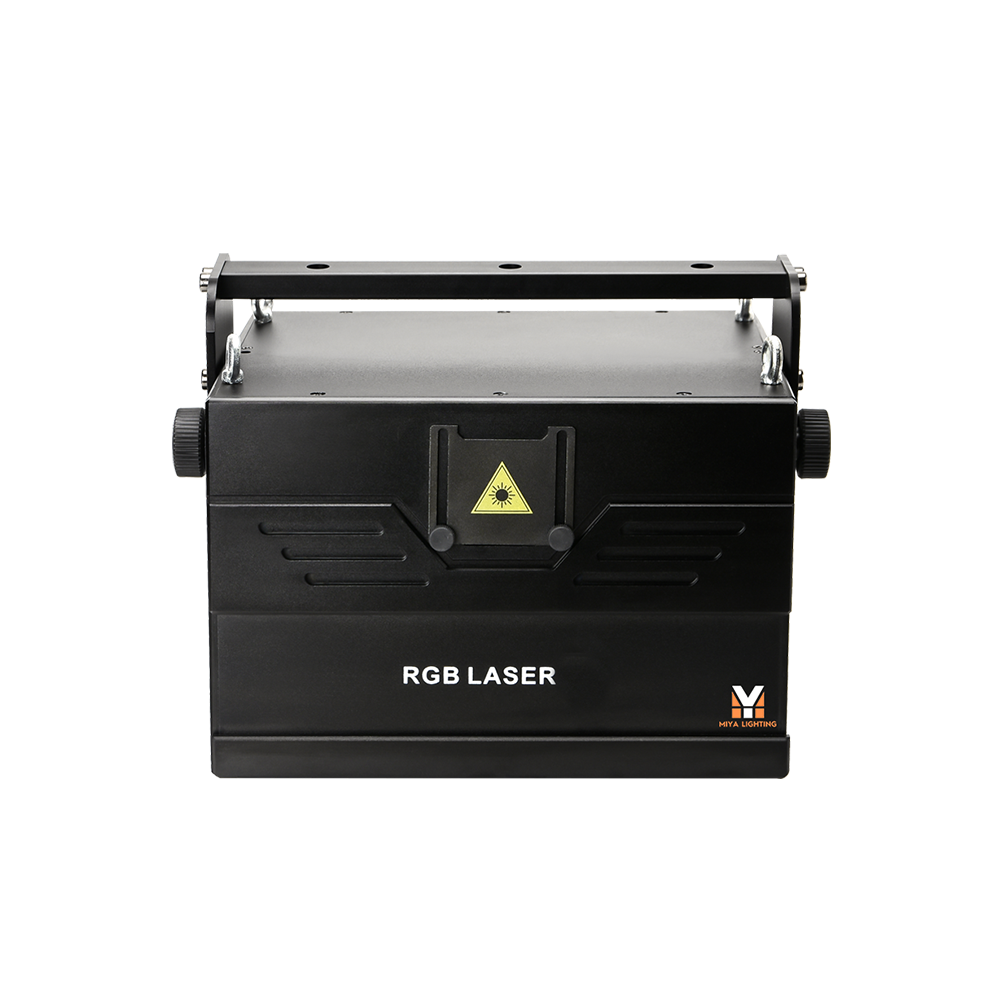

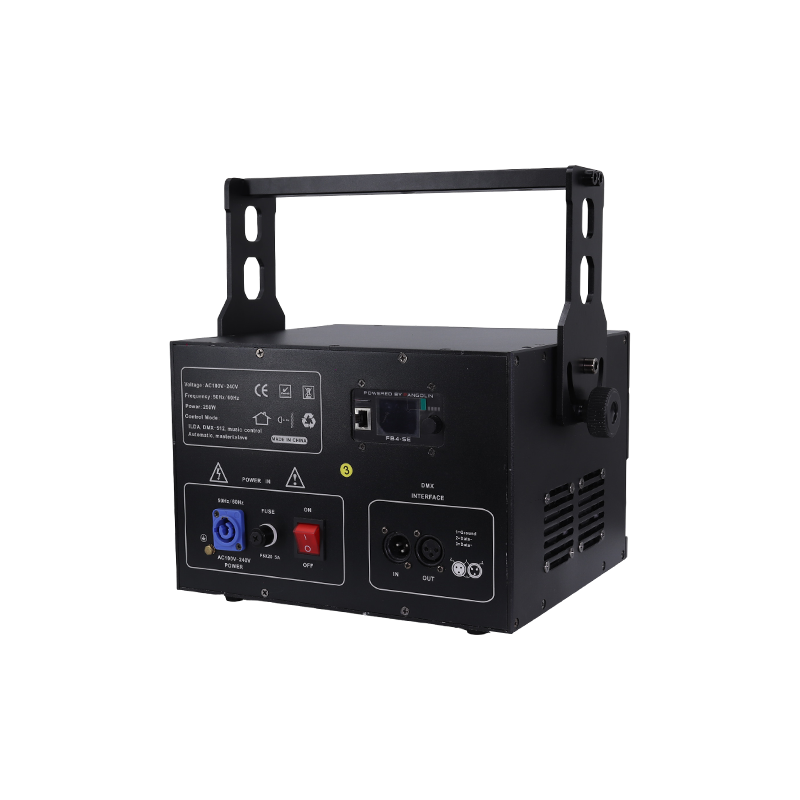

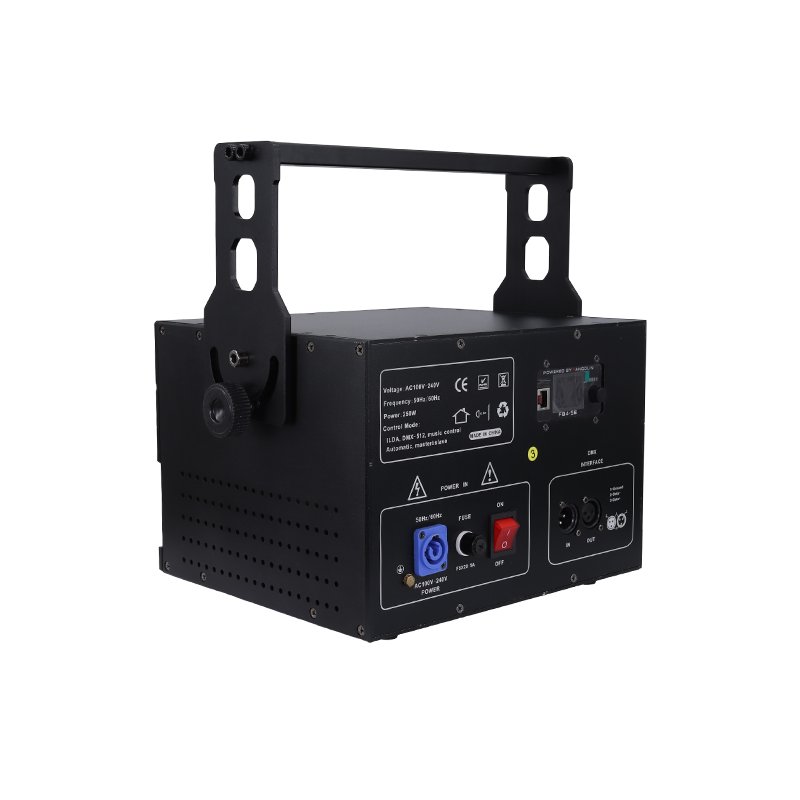

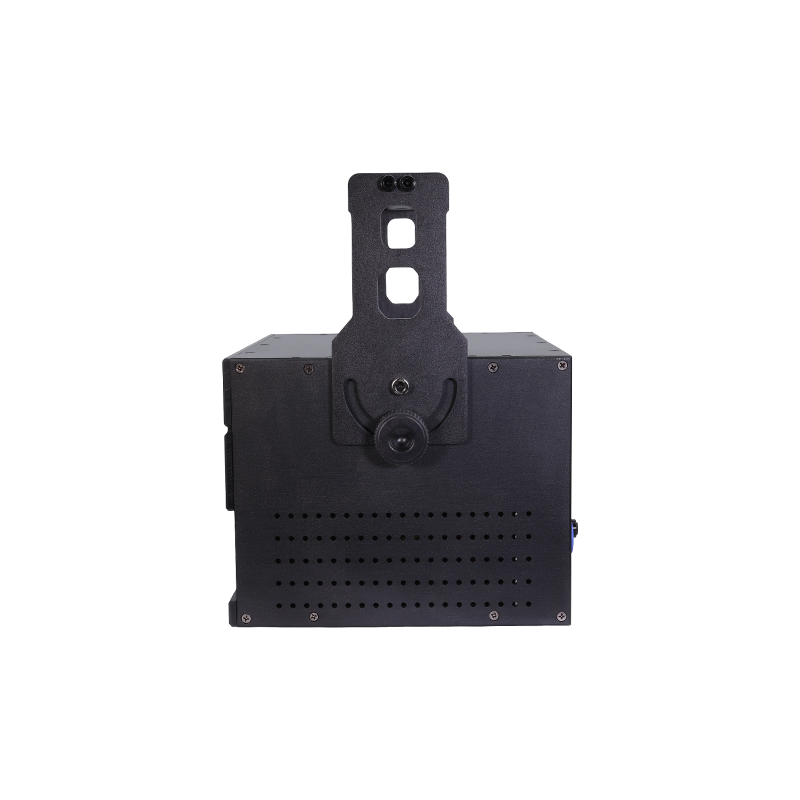

10W 25KPPS RGB Animation Laser Light Galvanometer Professional Stage Lights TTL
Enhanced Laser Effects with MIYA M560 10W Laser Lights Series
The MIYA M560 10W laser lights series redefines laser light projector with its Analog laser light projector 10000mW.
This remarkable semi-professional pure diode laser is not only capable of creating intense standard laser effects such as beams, waves, and tunnels but also offers basic graphics.

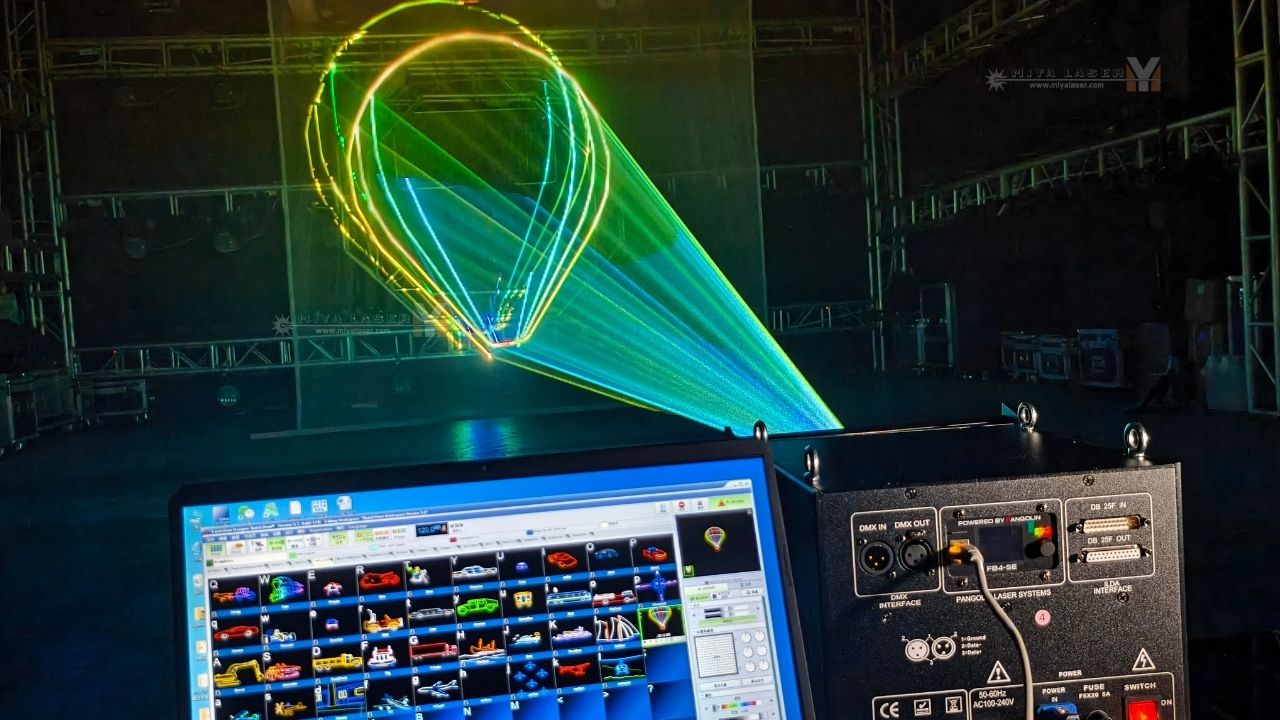

Take control of your lighting with sound-to-light, stand-alone modes, and DMX control, and utilize the ILDA port for professional computer control.
Improved Spot Quality for Optimal Performance
Leveraging cutting-edge laser technology, the M560 boasts enhanced spot quality.
At a distance of 50 meters, the spot diameter is only about 30% farther than conventional lasers, significantly extending the range and intensity of your laser light projector.
Intelligent Temperature Control for Safe Operation
- Specially designed for the M560, our intelligent temperature control system ensures reliable performance even in challenging environments.
- Operating flawlessly between minus 30 degrees and plus 40 degrees Celsius, the laser includes independent over-temperature protection to safeguard against damage due to overheating.
Silent Operation for Noise-Sensitive Environments
With MCU-controlled linear speed regulation, all fans operate smoothly and quietly.
This feature is particularly beneficial in noise-sensitive settings like studios, concerts, and other events that require minimal background noise.
Our two-year testing process allowed us to optimize specific setting parameters, bringing you closer to the ideal working condition of the laser.
Versatile Applications for Different Venues
The M560 laser lights technology is perfectly suited for both large and medium-sized indoor venues, as well as small and medium-sized outdoor performances and festivals, ideal for venues spanning approximately 2000 to 5000 square feet.
Moreover, you can use the laser indoors and outdoors to project laser graphics, signs, text, and laser billboard advertising.
Specifications
Model
M560
Power supply
AC90-240V,50-60Hz±10%
Rated power
max 200W
Laser power
RGB10W
Laser modulated signal
analog or TTL modulation
Type of laser
imported semiconductor solid-state laser
Beam diameter at the aperture
less than 8mm
Beam divergence
less than 1.3mrad
Laser wavelength
red 638±5nm, green 520±5nm, blue 450±5nm
Scanning system
25KPPS high speed scanning
Control mode
international standard ILDA control /DMX512 signal control /self-walk/voice control/master-slave

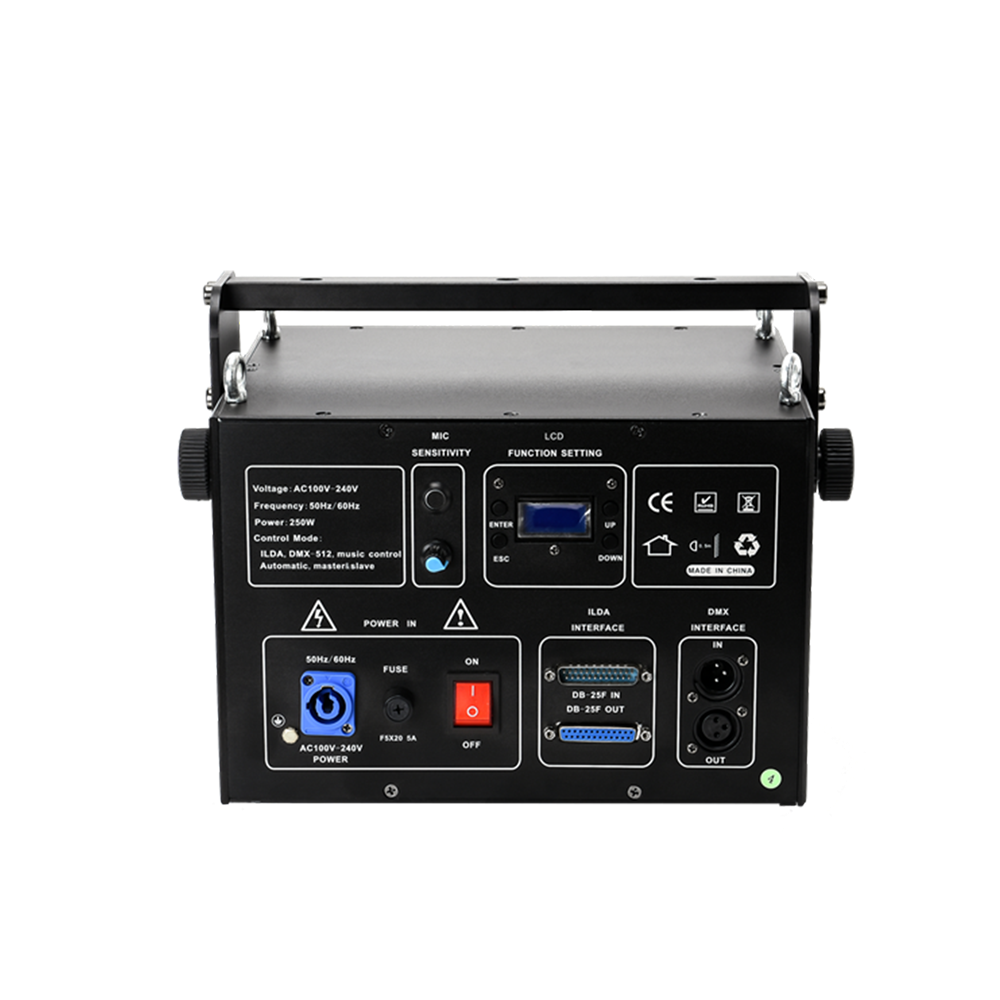

Control interface

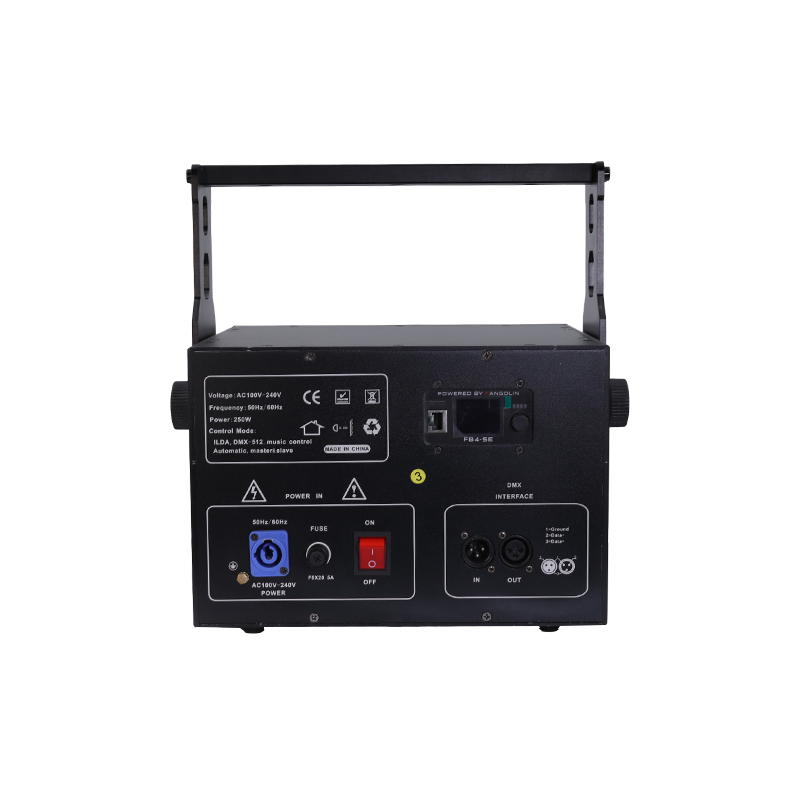

international ILDA DB25 interface, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc..
Safety function
one beam protection, no signal to close the light, etc
Suitable places
show，dacing hall, club, Bar and other enterntainment venues
Working environment
indoor
Packing
carton case
Frequently Asked Questions
Is the 10W RGB LaserMan Laser Show Light compatible with other lighting equipment?
Yes，the 10W RGB LaserMan Laser Show Light is compatible with DMX laser lighting systems, allowing for easy integration with existing stage lighting equipment. This compatibility ensures that the laser light can be seamlessly incorporated into a wide range of event lighting setups. Whether you are using light bars, LED stage lights, or other lighting fixtures, this laser light enhances your setup, providing versatile and dynamic lighting solutions for various applications.
10W 25KPPS RGB Animation Laser Light Galvanometer Professional Stage Lights TTL
Sale price$1,135.00
Learn more
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
Laser Power
RGB 5W/10W/15W
Laser wavelength
Red 638nm / Green 520nm / Blue 450nm
Beam Divergence
<1.3mrad（sharp and precise projection）
Scanning System
20K–30KPPS high-speed galvo scanning
Power Supply
AC110/220V, 50–60Hz ±10%
Control Modes
ILDA / DMX512 / Auto / Master–Slave
Rated Power Consumption
Max 300W
Modulation Type
Analog or TTL modulation
Laser Type
Imported semiconductor solid-state laser
Beam Diameter at Aperture
<7mm
Control Interface
RJ45 ILDA / DMX512, compatible with Pangolin, Tiger, Pearl, MA controllers
Safety Functions
One-beam protection, auto shutoff when signal lost
Working Environment
Indoor/Outdoor
Video
PRODUCT DETAILS/FEATURES
Product Advantages
Seamless App Control Anywhere
Control your professional laser light projector right from your phone using the LightELF app (iOS & Android). No DMX console needed—customize laser patterns, brightness, and animation settings on the fly, perfect for parties, weddings, or backyard displays.
IP66 Waterproof for Any Weather
Built with a rugged IP66-rated shell, this waterproof light is ready for rain, humidity, and outdoor use. Whether it’s a summer celebration or winter holiday event, it works flawlessly all year round.
High-Powered Full Color Output
Featuring up to 15W RGB power with a beam divergence under 1.3mrad, this custom laser light projector delivers bright, clean, and vivid beams that cut through fog and darkness—ideal for open-air shows or indoor use.
Smooth & Sharp Animated Laser Beam
Equipped with 30KPPS scanning, the MA3 produces ultra-smooth motion for logos, text, or animation. It's a true animated laser beam system designed to impress at weddings, DJ parties, and live shows.
Multiple Control Modes Built In
Choose from DMX, ILDA, auto, or sound activation modes. Whether you’re syncing with music or setting up a timed show, this laser show projector adapts to every setup with ease.
Preloaded Patterns for Instant Use
Comes with built-in animation and wedding-themed presets, so you can start your laser light show right away—no programming needed. Great for first-time users looking for easy, high-impact visual effects.
Product Overview
Built for Outdoor Fun, Rain or Shine
The MIYA MA3 Series is a professional laser light projector built to handle real weather. With its IP66 waterproof light housing, it stands up to rain, dust, and outdoor conditions—perfect for outdoor lasers at weddings, parties, or seasonal events. Whether you're planning a backyard gathering or a large event, this wedding light projector is easy to set up and instantly elevates any atmosphere.
Vivid Animated Beams with Pro-Level Clarity
Featuring up to 15W RGB power and crisp animated laser beam effects, the MA3 delivers stunning visuals across any venue. Thanks to its high-speed 30K scanning, this animated projector keeps graphics, names, or patterns looking smooth and sharp. Whether you’re hosting a celebration or building a custom laser light show, this custom laser light projector makes a bold impact.
Simple Setup with Flexible Control
This laser show projector puts full control at your fingertips—use DMX, sound activation, auto-play, or manage everything from your phone with the mobile app (iOS & Android). Whether you're creating a dance floor vibe or designing a personalized projection for a wedding, the MA3 makes it easy. It’s the perfect outdoor show laser for anyone who wants high-end effects without the complicated setup.
Scene Display
Clubs and Bars
Wedding Events
Building Projection
Outdoor Laser Shows
Event Parties
FAQ
Q1: Can I use the MA3 laser projector outdoors year-round?
Yes! The MA3 Series is built with an IP66-rated waterproof housing, making it perfect for outdoor use in all weather conditions—rain, dust, even humidity. Great for holiday shows, weddings, or outdoor events.
Q2: Does it require a DMX console to operate?
Not necessarily. While it supports DMX512 and ILDA for advanced setups, you can also control it using auto mode, sound mode, or via the LightELF app on your phone—no console required.
Q3: Is this projector bright enough for large spaces?
Absolutely. With up to 15W of full-color RGB laser power and a beam divergence of less than 1.3mrad, it projects vivid, high-impact visuals even across medium to large venues.
Q4: What kind of visuals or patterns can it create?
The MA3 supports animated laser beams, custom logos, text, and over 1,500 built-in gobos. Whether you’re planning a wedding, concert, or brand activation, it’s a powerful tool for eye-catching laser light shows.
