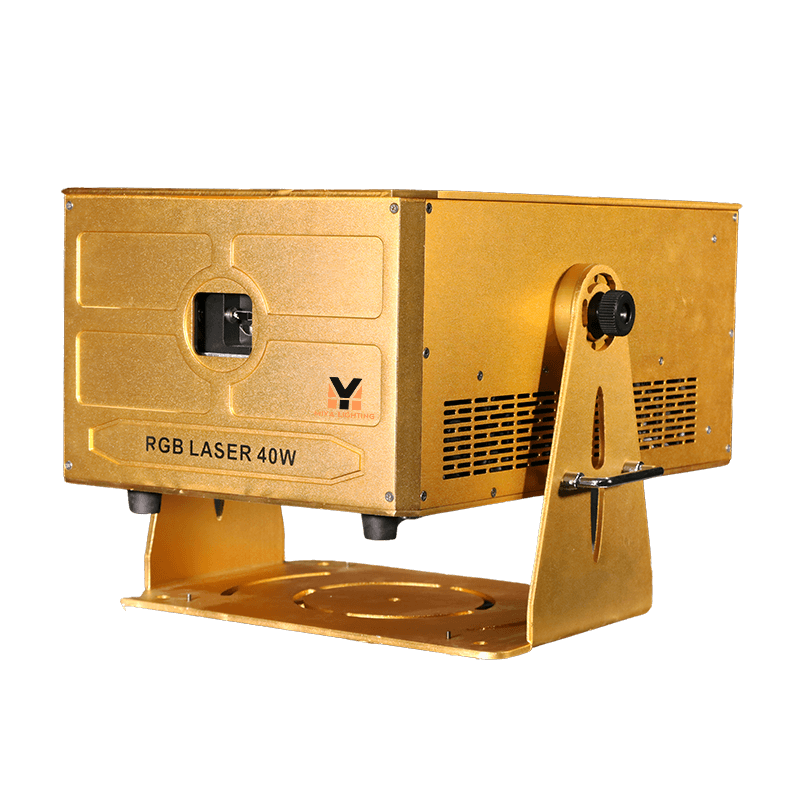

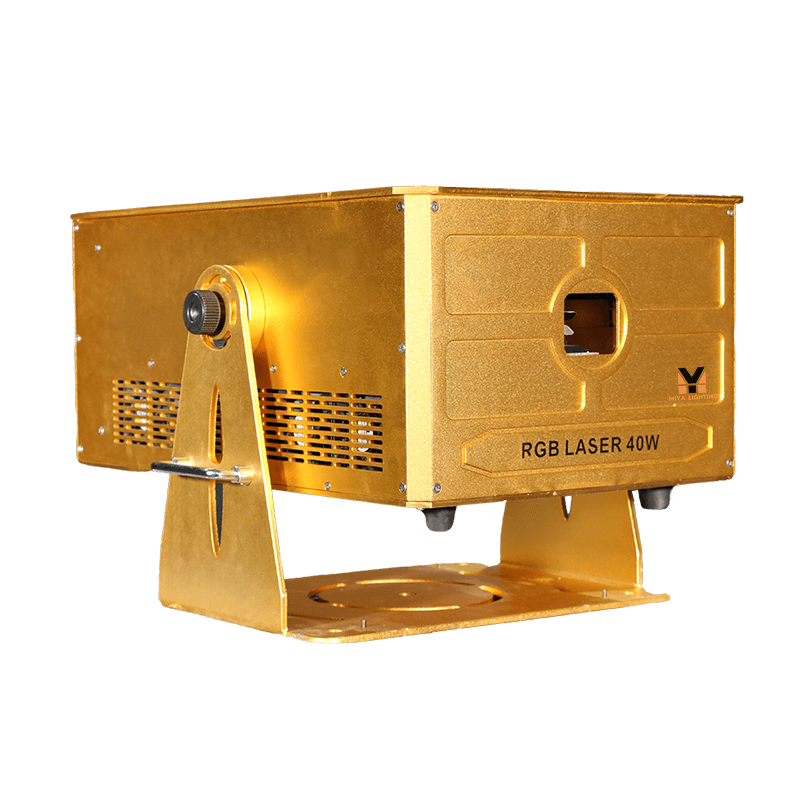

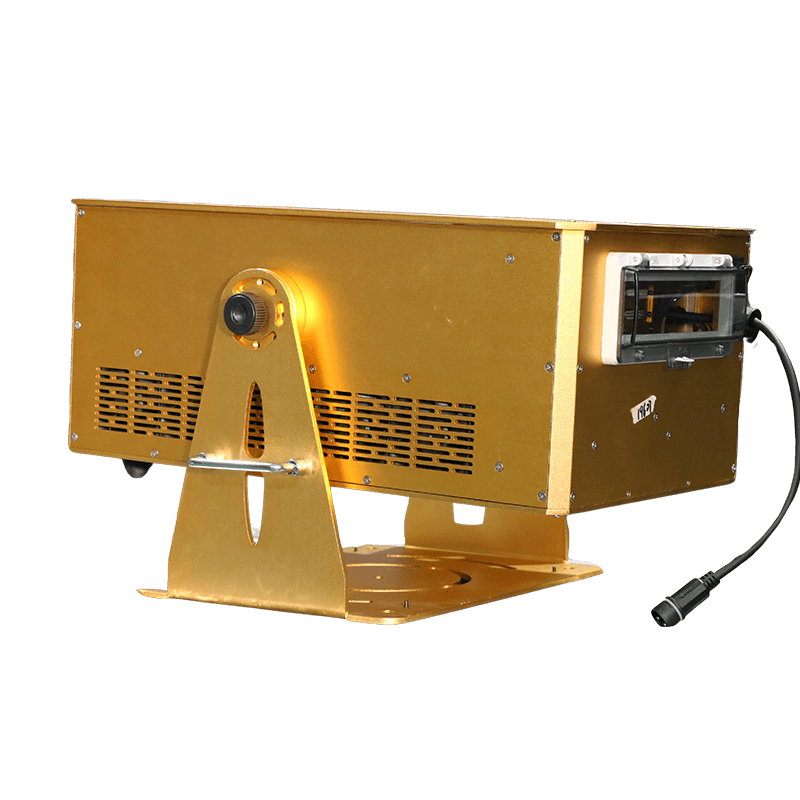

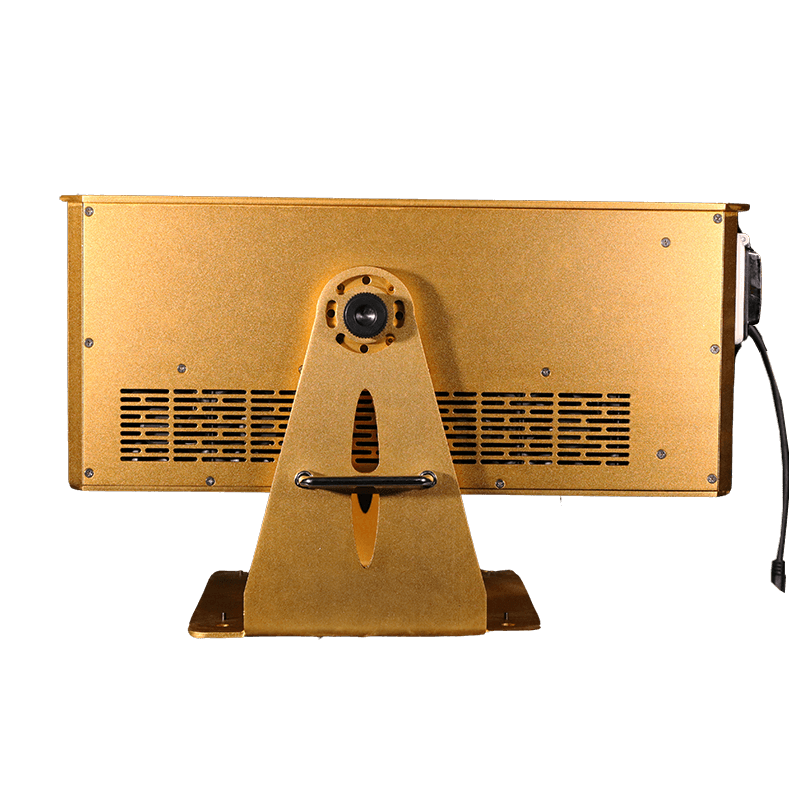

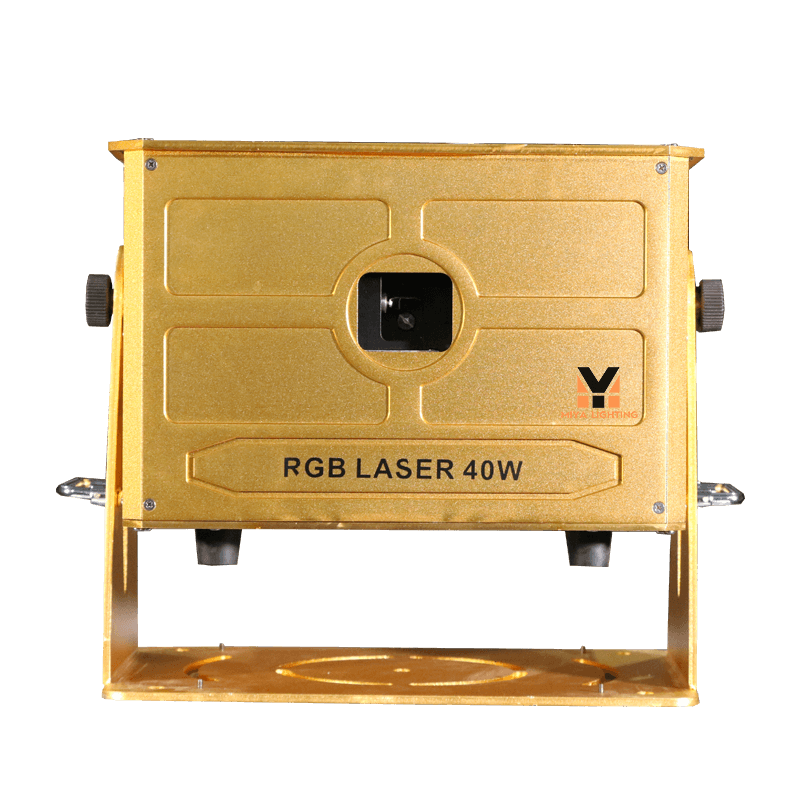

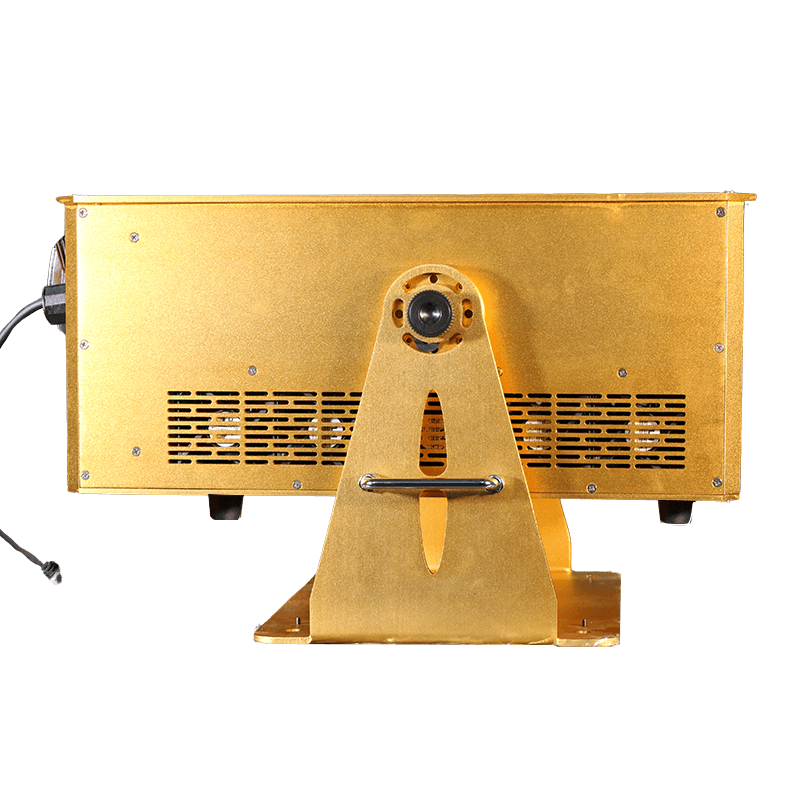

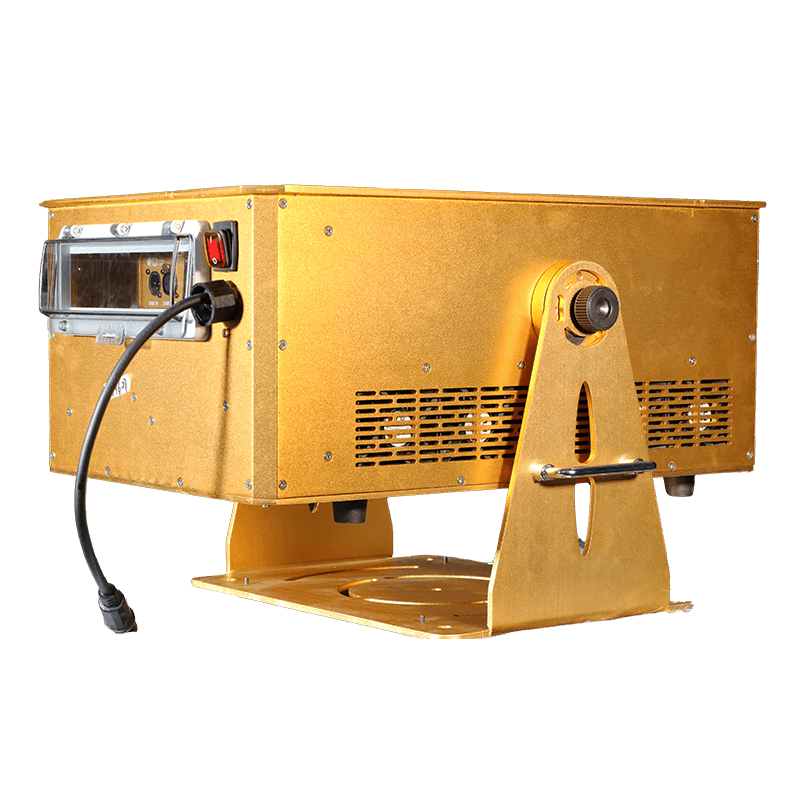

MIYA M5400 IP65 40W RGB Outdoor Laser Light Projector
MIYA
Regular price
$6,770.00
Sale price
$6,770.00
Regular price
Save 0
Introduction
The MIYA M5400 40W IP65 dj laser light is the latest addition to the MIYA stage lights family.
It combines cutting-edge diode technology with precision optics to create a powerful stage lights system enclosed in a waterproof IP65 housing.
This stage lights system is ideal for large-scale indoor and outdoor performances or permanent installations.
Control and Connectivity

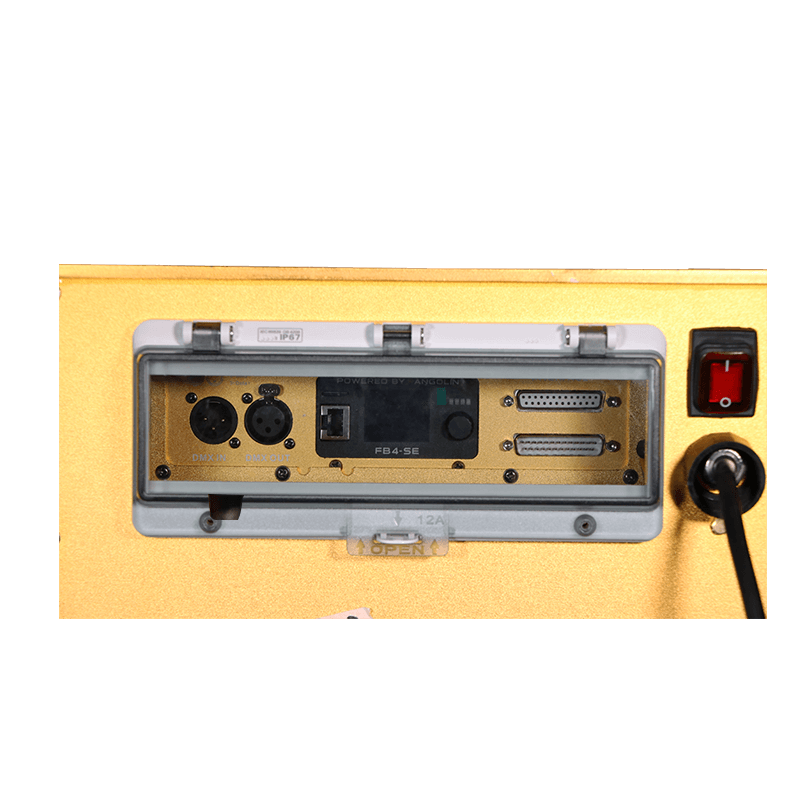

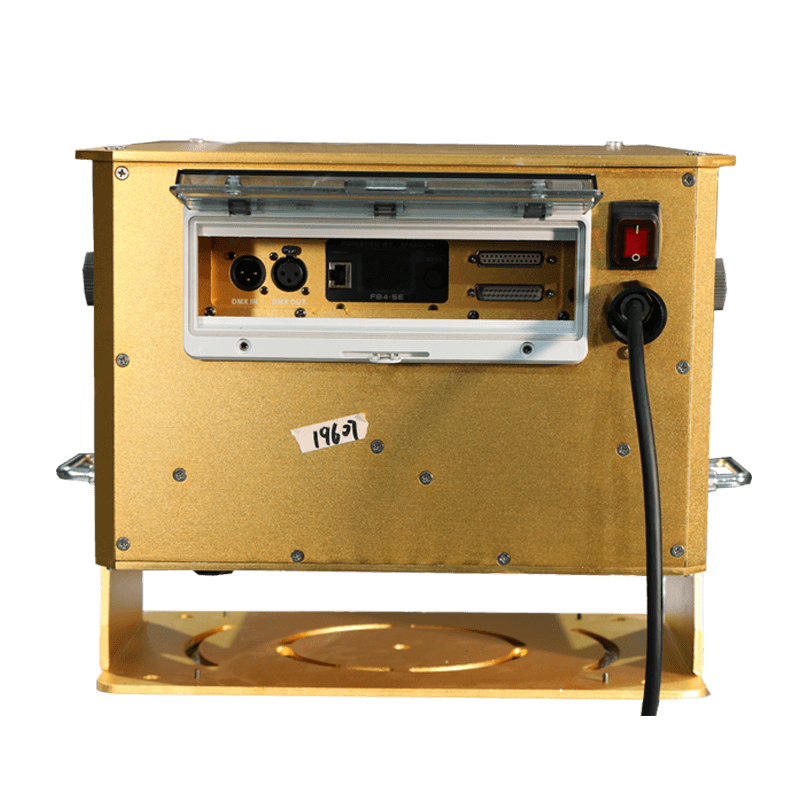

The device comes with built-in Pangolin FB4-MAX and ethercon connectors, allowing comprehensive control through network connections (cat5/cat6) or using ArtNet and DMX.
Additionally, it offers cascading connections between units, thanks to its built-in network switch. You can also add optional dichroic filter adjustments for internal digital alignment via FB3/4 software.
Accessories and Compliance
- The laser light projector includes a robust plastic flight case, ILDA cables, an emergency stop system, interlocks, key switch, and a mechanical shutter.
- It fully complies with American CDRH/FDA regulations as well as European and other international standards.
Quality and Customization
The MIYA M5400 40W IP65 dj laser light is developed to provide customers with outstanding value in laser projection systems while meeting NF's professional quality standards.
These dj laser light systems are entirely manufactured in Europe, using only the highest-quality components and craftsmanship.
Technical Specifications
The MIYA M5400 40W OPSL internally utilizes MIYA custom-made diode and OPSL modules with excellent beam divergence (less than 1.3mrad) and beam diameter (10 mm), ensuring good white balance.
It offers full analog modulation capabilities, creating millions of color combinations and smooth gradients.
LASORB protection safeguards the internal laser diodes from damage due to electrostatic discharge or power fluctuations.
Specifications
Model
M5600
Power supply
AC110/220V, 50-60Hz±10%
Rated power
max 600W
Laser power
RGB40W
Laser modulated signal
analog or TTL modulation
Type of laser
imported semiconductor solid-state laser
Beam diameter at the aperture
less than 8mm
Beam divergence
less than 1.3mrad
Laser wavelength
red 635 or 638±5nm, green 532 or 520±5nm, blue 450±5nm
Scanning system
25-30KPPS high speed scanning
Control mode
international standard ILDA control /DMX512 signal control /self-walk/master-slave
Control interface
international ILDA DB25 interface, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc.
Safety function
one beam protection, no signal to close the light, etc
Suitable places
land mark bulding, theme park,dacing hall, club, big show and other enterntainment venues
Working environment
outdoor /indoor
Protection level
IP53
Packing
flight case
