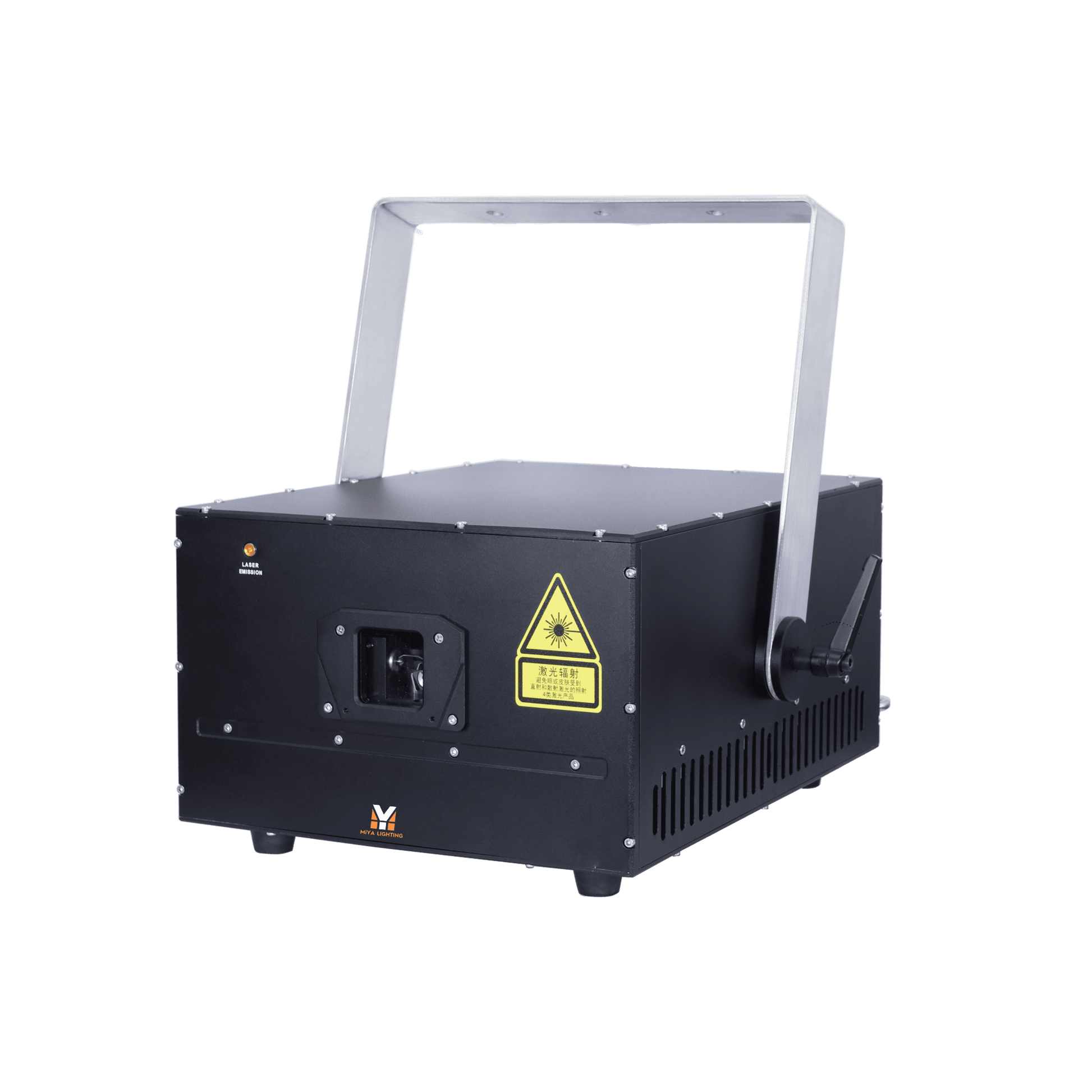

SF5 20W Waterproof IP65 FB4 RGB Laser Projector High Power DMX ILDA Laser Lights
MIYA
Regular price
$3,250.00
Sale price
$3,250.00
Regular price
Save 0
Brilliant RGB Power for Big Shows
The SF5 IP65 delivers 18W of pure RGB output with razor-sharp <1mrad beams. Using R5.5W/638nm, G4.5W/520nm, and B8W/455nm lasers, it produces bright, vivid colors and smooth analog fades.
Designed as a professional laser projector, it’s ideal for laser light shows, concert lights, and large-scale event lighting where powerful effects and reliable performance are essential.
Flexible Control Options
The SF5 supports ILDA laser and DMX laser control, plus auto, sound, master-slave, and smartphone APP modes. The mobile APP gives you remote access and quick adjustments during live shows, making operation easier than ever.
A built-in network switch simplifies syncing multiple units, while the optional FB4 laser upgrade works seamlessly with Pangolin QuickShow and BEYOND for a complete laser light show system.
Built for Outdoor Performances
- With its IP65-rated housing, the SF5 is ready for any outdoor laser light show.
- It withstands rain, dust, and haze, making it a reliable choice for festivals, theme parks, and permanent installations. Rugged yet compact, this laser show projector ensures stable performance in any environment.
Safety and Smart Cooling
The SF5 includes laser lock protection, single-beam safety, and blackout on signal loss to keep your shows secure.
Its intelligent cooling system maintains stable performance, reduces heat, and extends the lifespan of the laser. Whether running one projector or a full DMX laser light rig, the SF5 delivers consistent, professional results.
Cleaner Colors with Red Beam Correction
Advanced red beam compression and color correction technology give the SF5 sharper beams, balanced tones, and cleaner whites.
Perfect for logos, text, and high-contrast laser animation, this custom laser light projector delivers precise effects for both indoor and outdoor productions.
Compact, Portable, and Easy to Pack

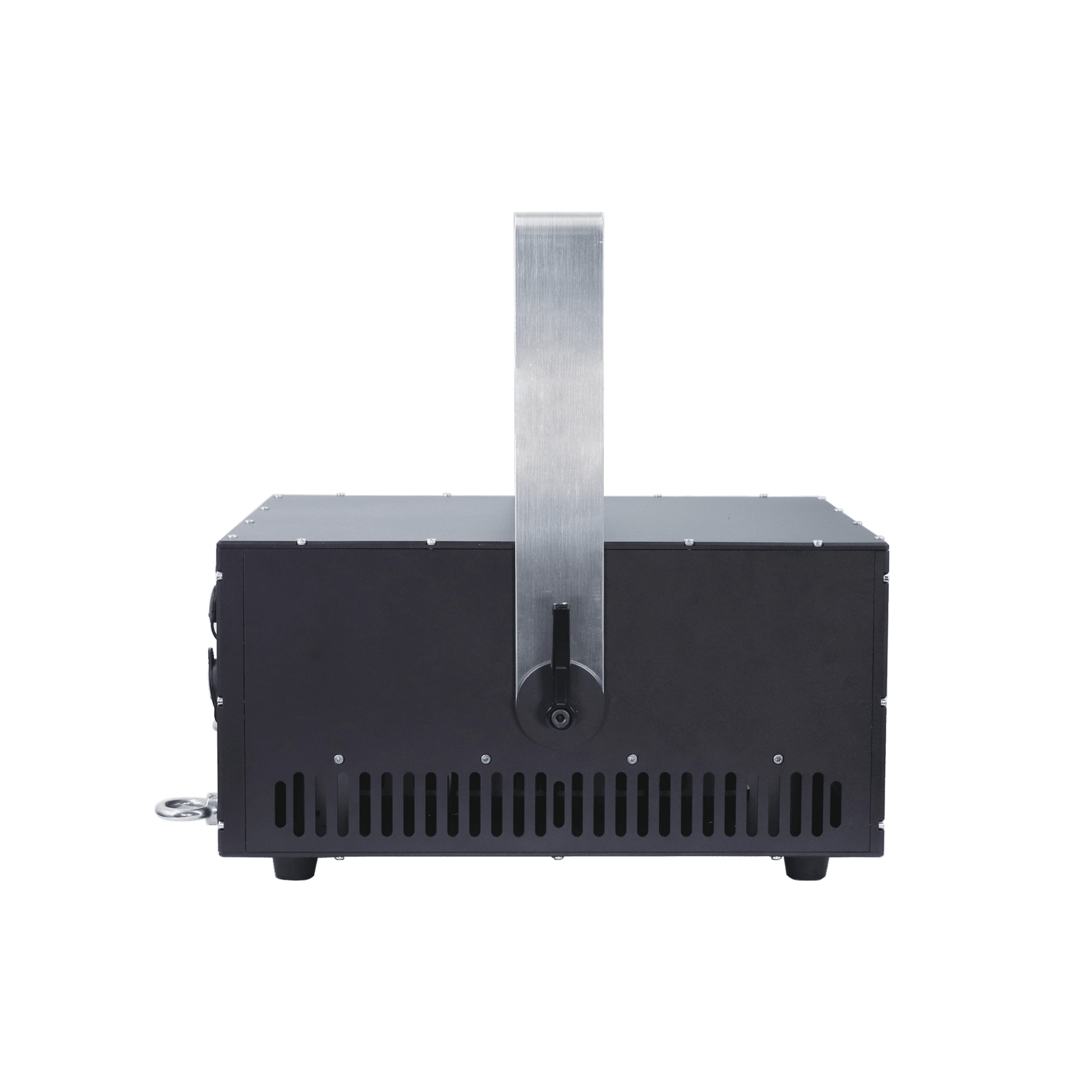

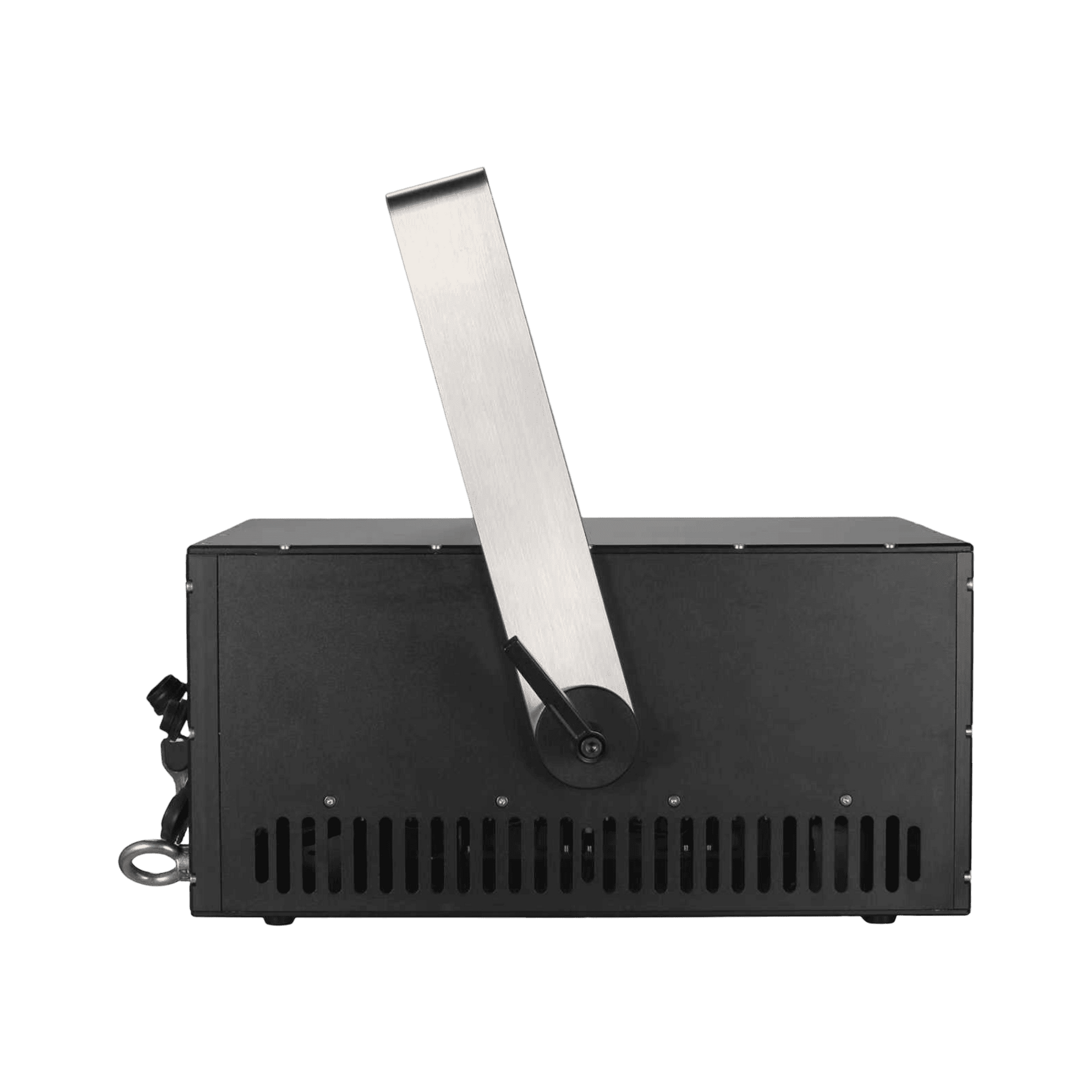

At just 11kg, the SF5 is lightweight yet powerful. A 360° rotatable handle makes setup quick and flexible. For transport, you can choose standard carton box or a durable flight case.
Combined with smartphone APP control, the SF5 adapts easily to touring productions, fixed installs, concert lights, or full-scale laser light show systems.
Specifications
Power supply
AC110/220V, 50-60Hz±10%
Rated power
Max 200W
Laser power
RGB 20W
Laser Modulation
Analog Modulation
Type of laser
Imported Semiconductor Solid-state Laser
Beam Size at Aperture
Less Than 8*5mm
Beam divergence
Less Than 1mrad
Laser wavelength
Red 638±5nm, Green 520±5nm, Blue 455±5nm
Scanning system
30Kpps High-Speed Galvo Scanner
Scanning Angle
30-35KPPS high speed scanning
Control Mode
international standard ILDA control /DMX512 signal control /self-walk/master-slave

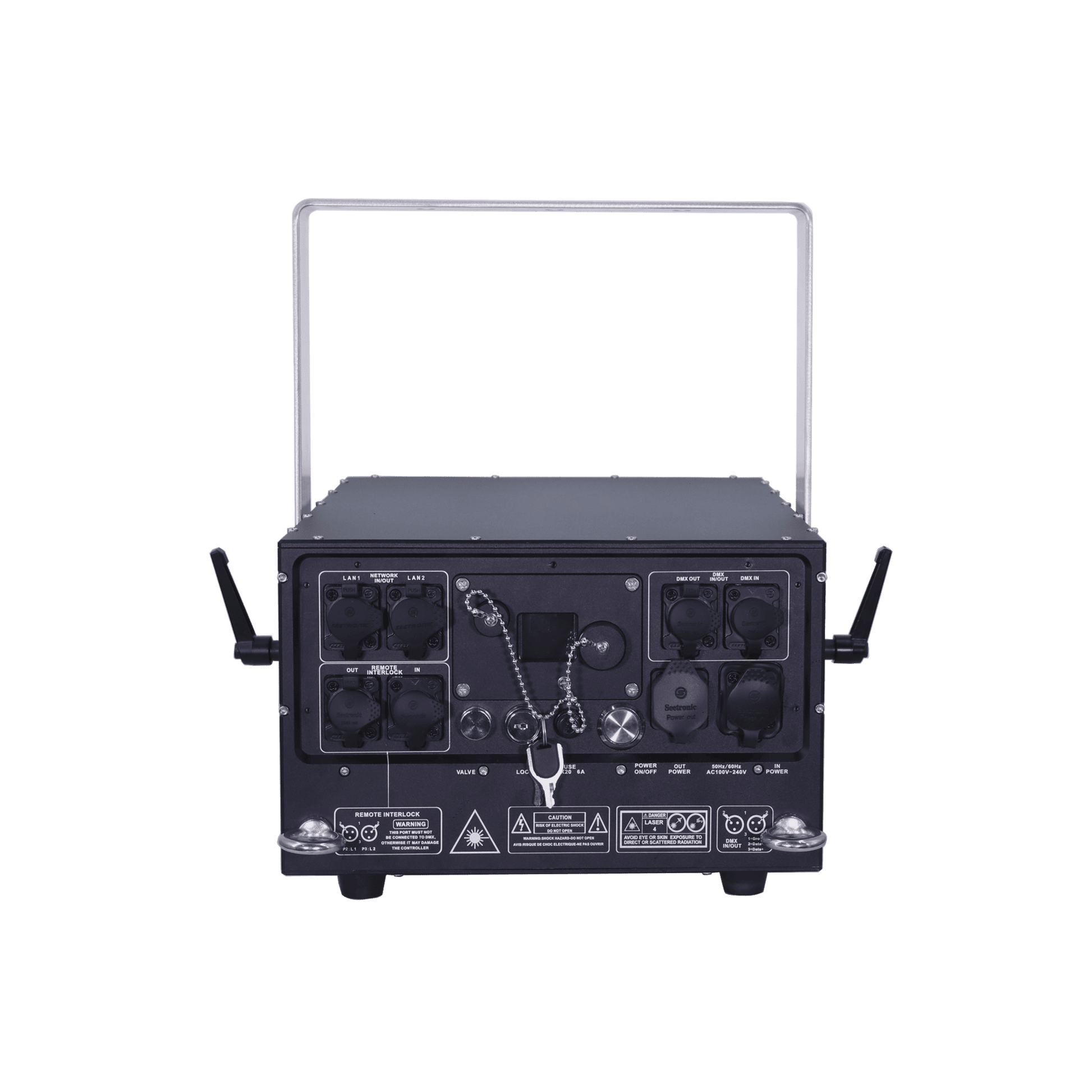

Control Interface
RJ45-ILDA control, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc.
Safety Function
one beam protection, no signal to close the light, etc
Suitable Places
land mark bulding, theme park,dacing hall, club, big show and other enterntainment venues
Working Environment
Outdoor /Indoor
Protection Level
IP65
Packing
Carton Box
Frequently Asked Questions
Q1: Is the SF5 suitable for outdoor events?
Yes. The SF5 has an IP65-rated housing, making it perfect for outdoor laser light shows. It resists rain, dust, and haze, so it works reliably at festivals, theme parks, and large laser light show systems.
Q2: What control options are available?
The SF5 supports ILDA laser and DMX laser light control, plus auto, sound, and master-slave modes. For advanced users, the optional FB4 laser upgrade integrates with Pangolin QuickShow and BEYOND, giving you full flexibility for any laser show projector setup.
Q3: How safe is the SF5 for professional use?
Safety is a priority. The SF5 includes laser lock protection, single-beam safety, and blackout on signal loss. Combined with intelligent cooling, it’s a secure and stable professional laser projector for both indoor and outdoor event lighting.
Q4: Is the SF5 easy to install and transport?
Yes. The compact 11kg design with a 360° handle makes setup quick and simple. For transport, you can choose standard carton box or flight case packaging. Whether you’re touring with concert lights or setting up a permanent custom laser light projector, the SF5 is built for convenience.
