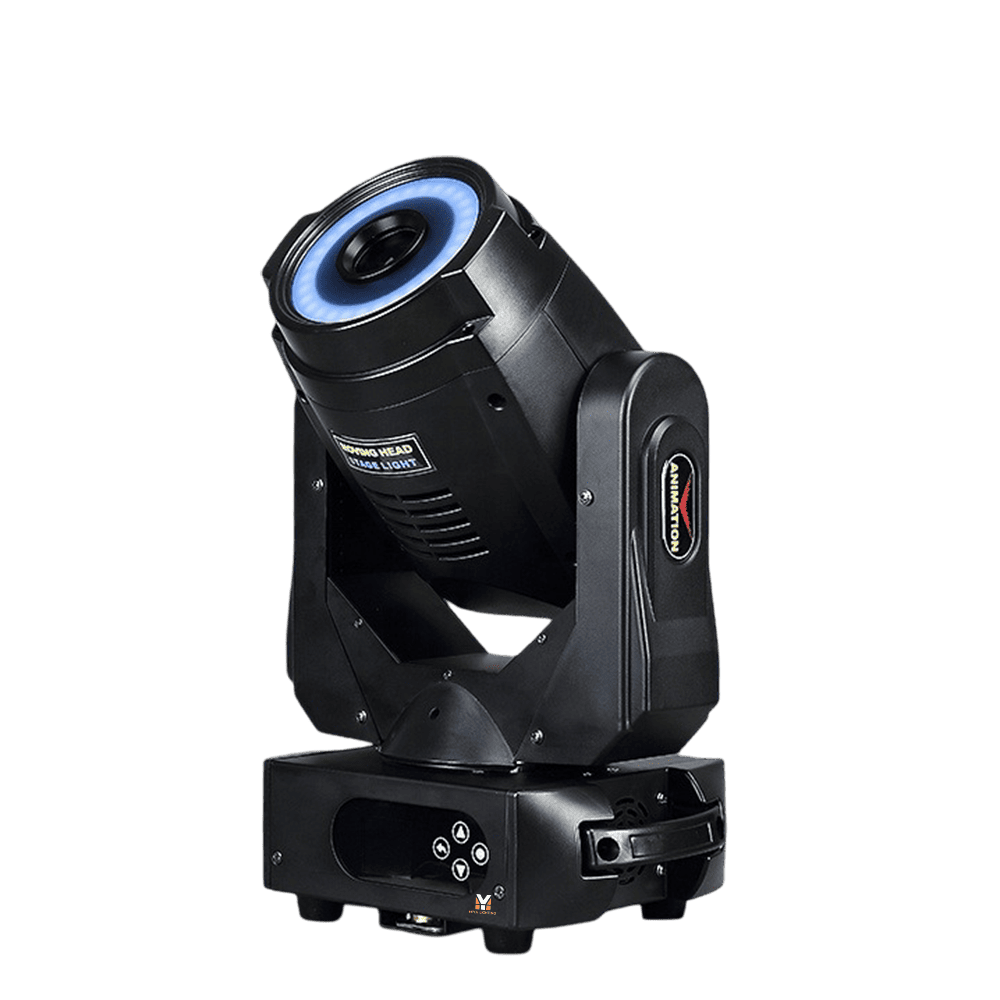

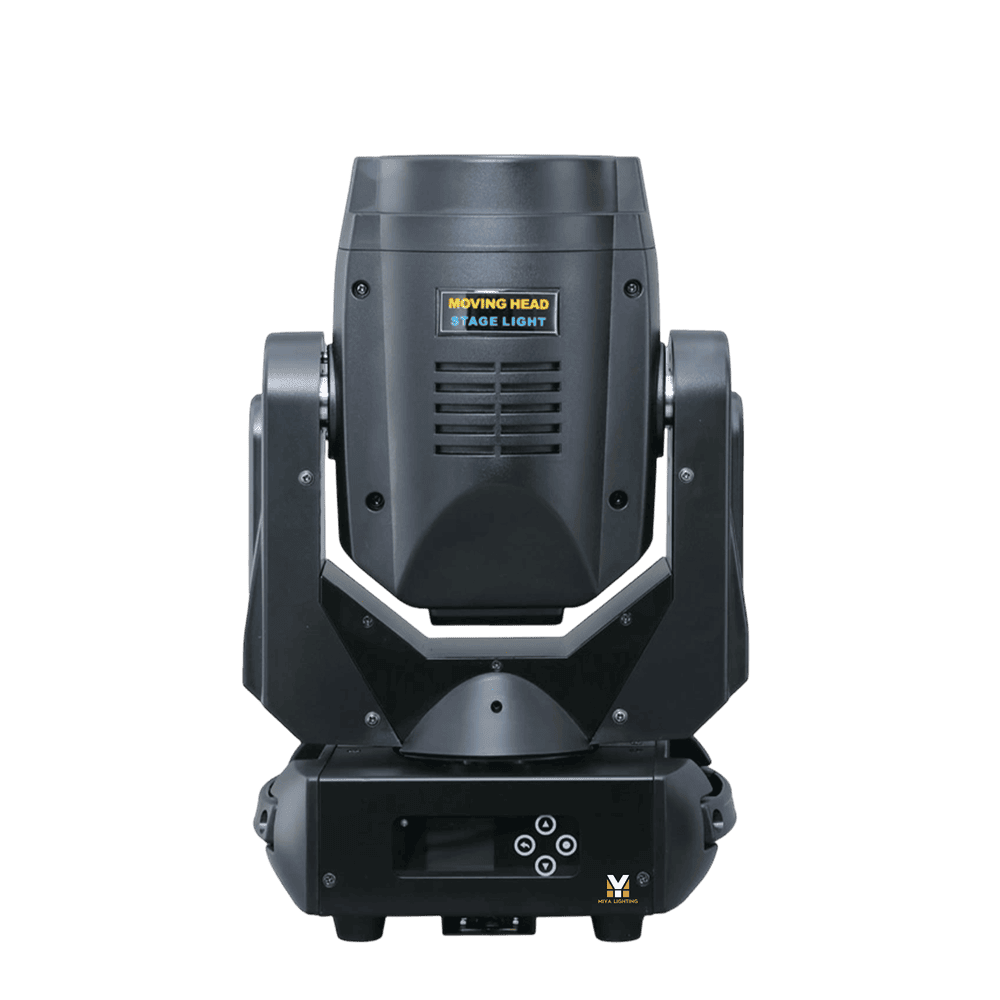

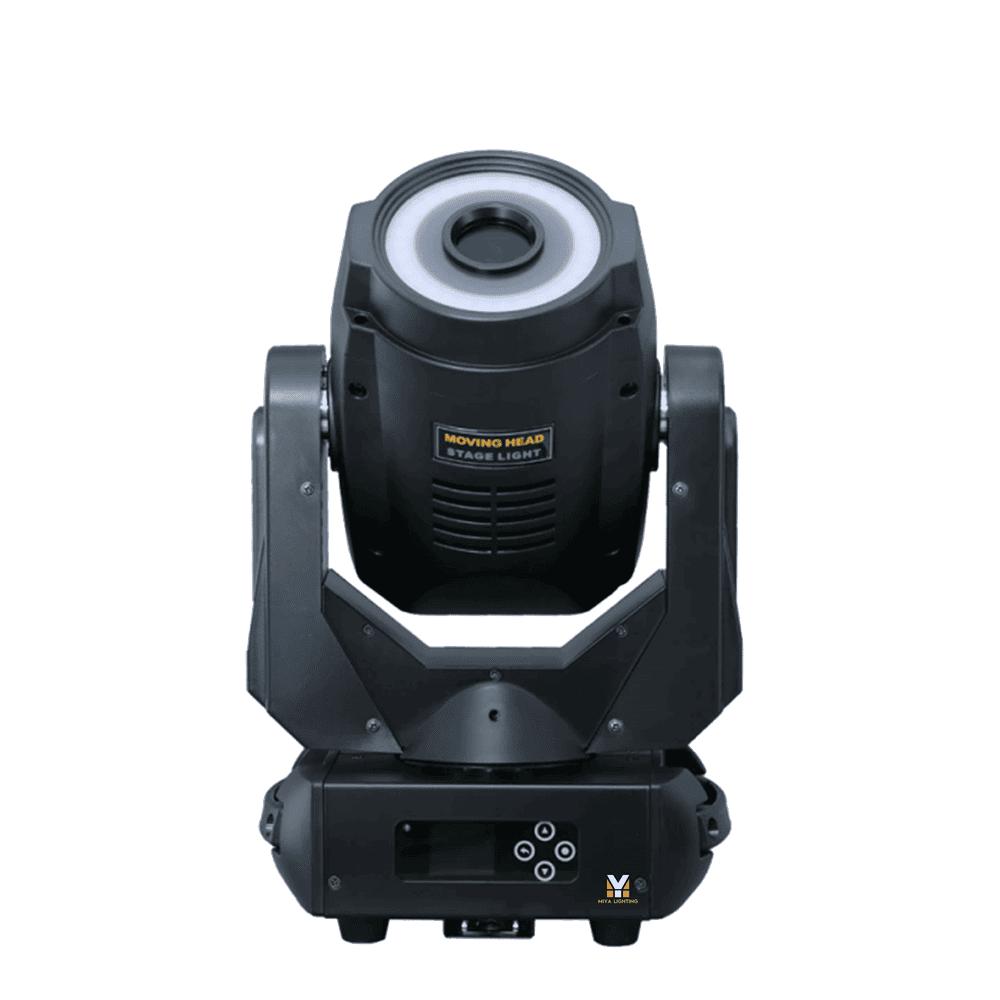

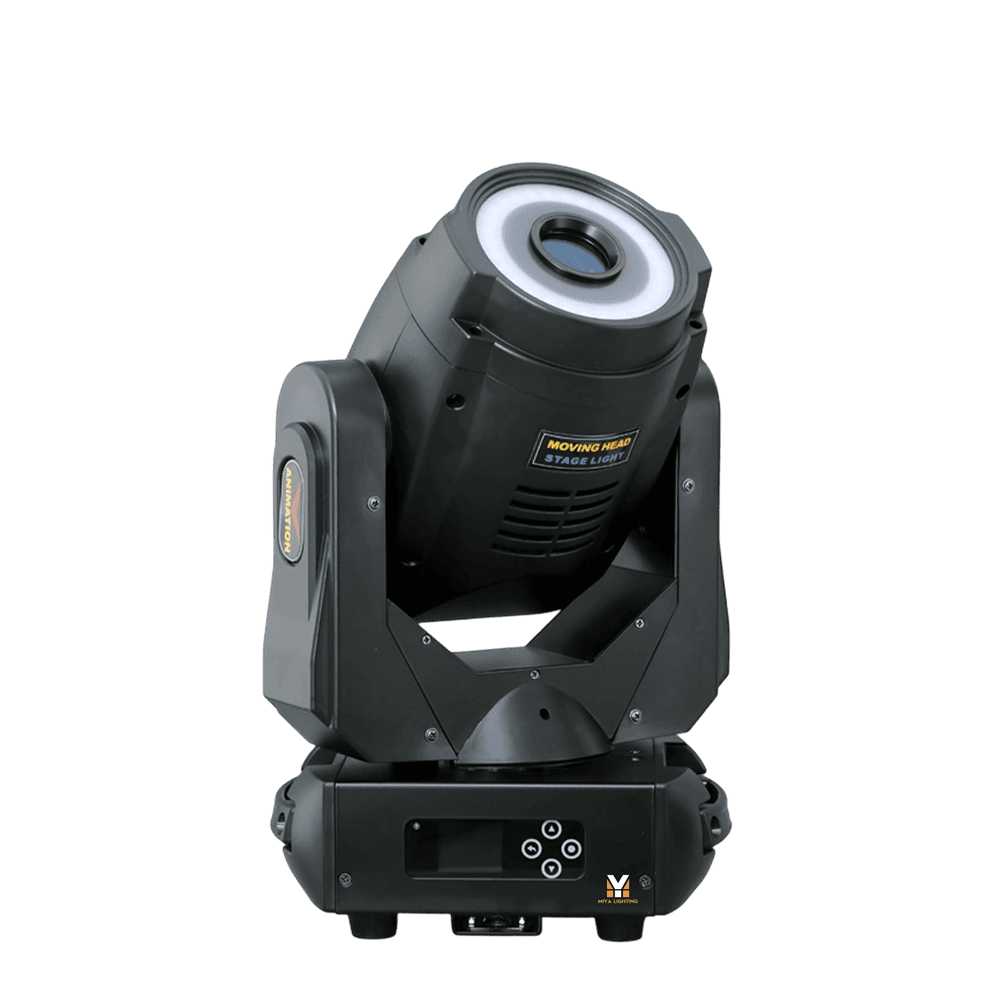

MFY 3W RGB Moving Head Laser Light Projector for DJ Club Concert Stage with 140 Patterns and DMX Control
MIYA MFY Moving Laser Light – Pro-Level Visuals for Any Stage

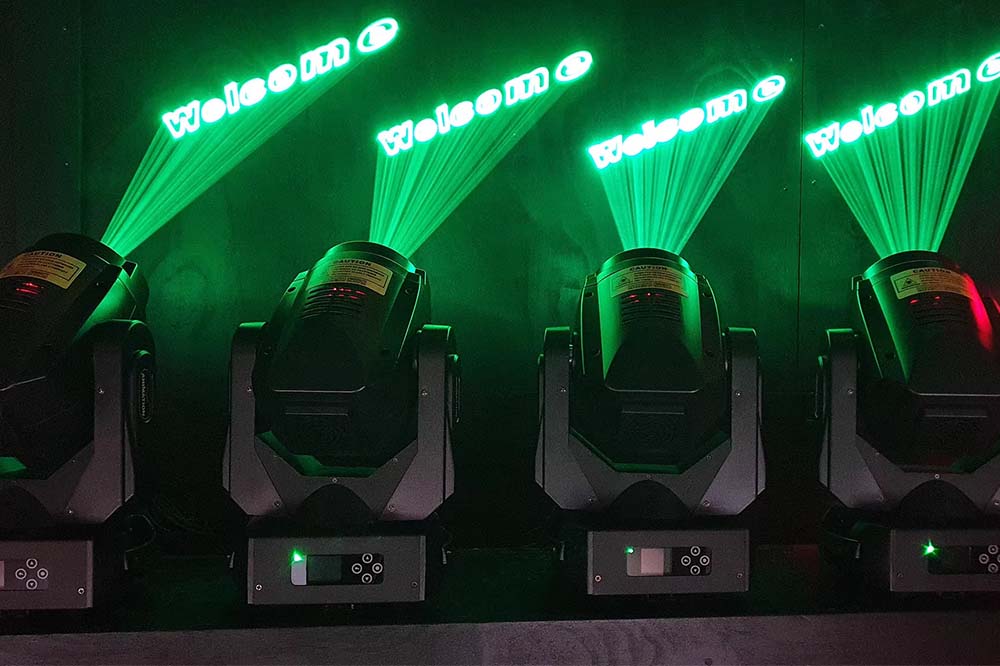

The MIYA MFY moving laser light isn’t just another stage fixture—it’s a show-stopper.
With a 3W laser engine (700mW red, 900mW green, 1.4W blue), this 3 watt RGB laser throws razor-sharp, full-color beams that stand out even in packed, high-energy venues.
Whether you’re running a DJ set, a live concert, or a themed event, this moving head laser light delivers the punch and precision your audience will remember.
Full Control, Zero Limits
Designed for lighting pros, the MFY supports DMX moving head laser control, ILDA input, music-activated mode, and master-slave setups.
It integrates effortlessly into your existing rig—whether you’re running a laser beam moving head in a nightclub or a laser bar moving head on a festival main stage.
With seamless compatibility for industry-standard software, this unit gives you the freedom to craft tightly synchronized light shows from start to finish.

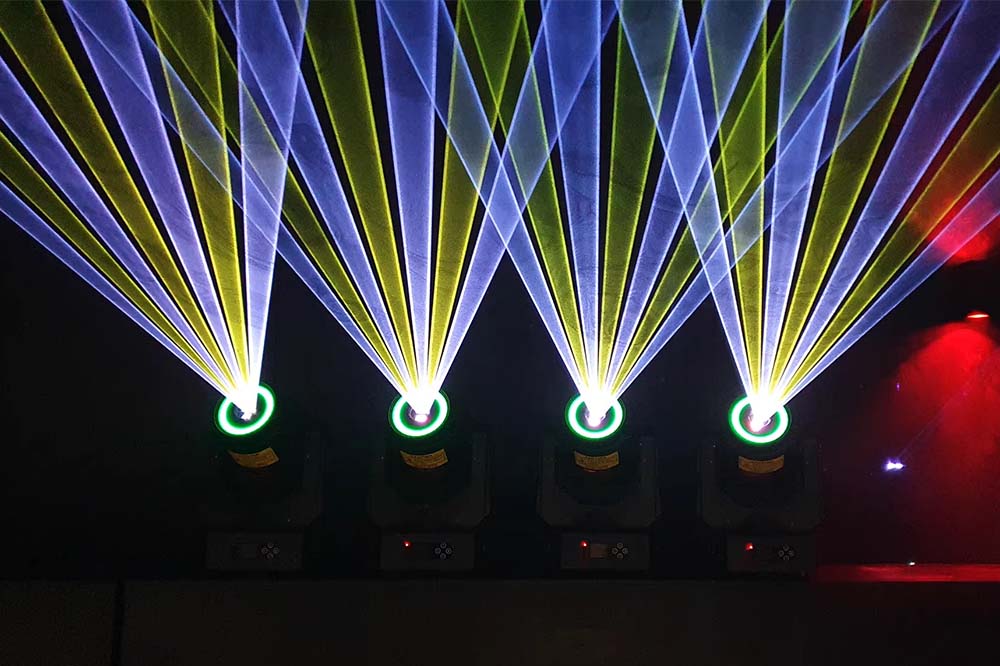

Precision Scanning with Built-In Laser Strobe Beam 3 in 1
- Equipped with a high-speed 25kpps scanner, ±30° scan angle, and 540°/270° pan-tilt rotation, the MFY can project anything from fine laser graphics to massive aerial sweeps.

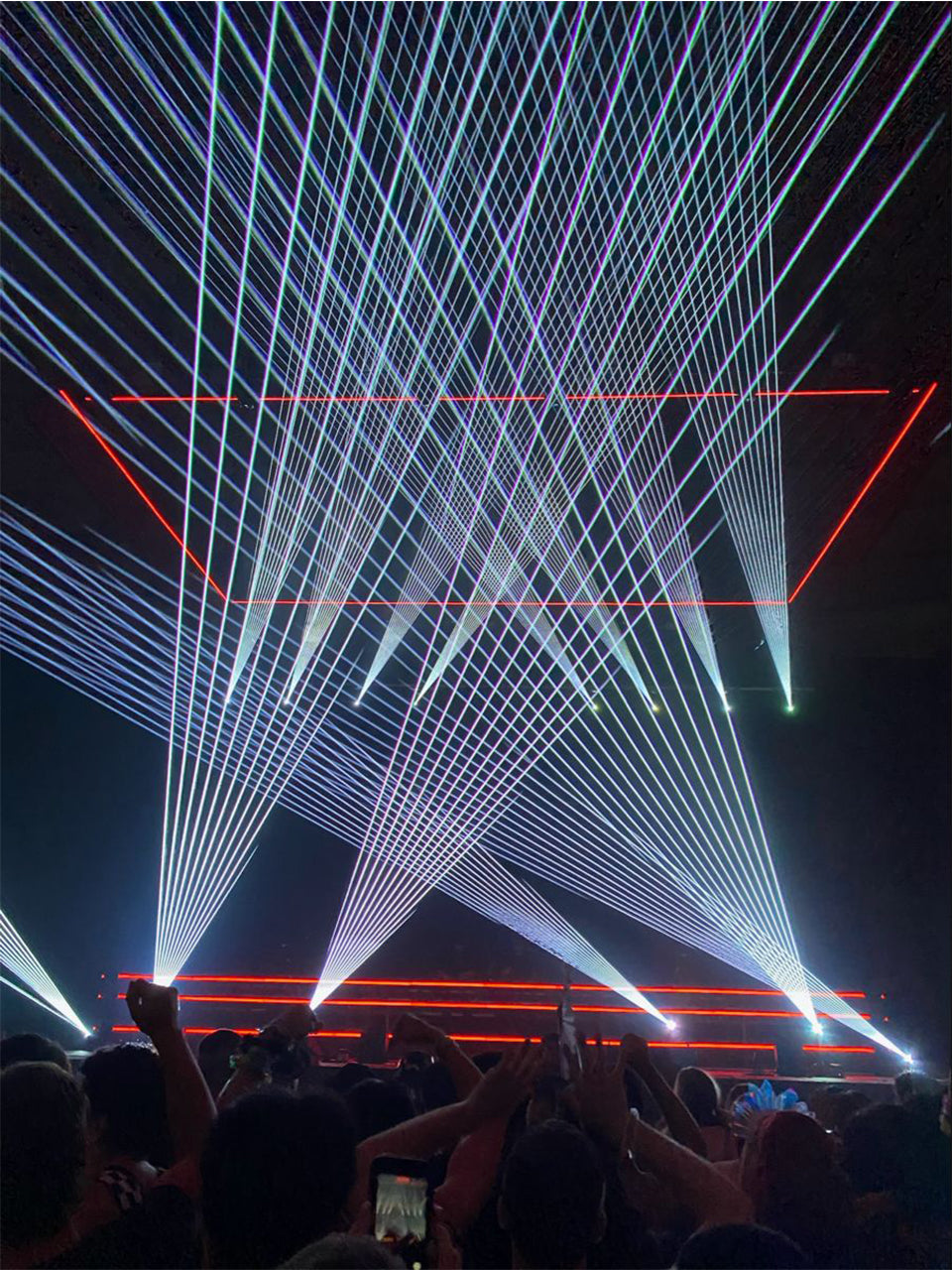

- The built-in laser strobe beam 3 in 1 effects, 140 geometric patterns, and 5 animations make it easy to build an unforgettable moving head disco light experience.
- Whether you’re aiming for a slow, elegant sweep at a wedding or a high-impact burst at a festival, this moving head laser has the range.
Built Tough, Travels Light
The MFY 3 watt laser packs pro-grade power into a compact, road-ready design. Measuring just 34.5cm x 23cm x 48cm and weighing 9.5kg, it’s easy to transport in the included flight case.
That makes it ideal for touring DJs, rental companies, and anyone who needs a dependable laser moving head for both indoor and outdoor gigs.
From intimate receptions to large-scale shows, it works flawlessly as a stand-alone laser light projector or part of a full rig.

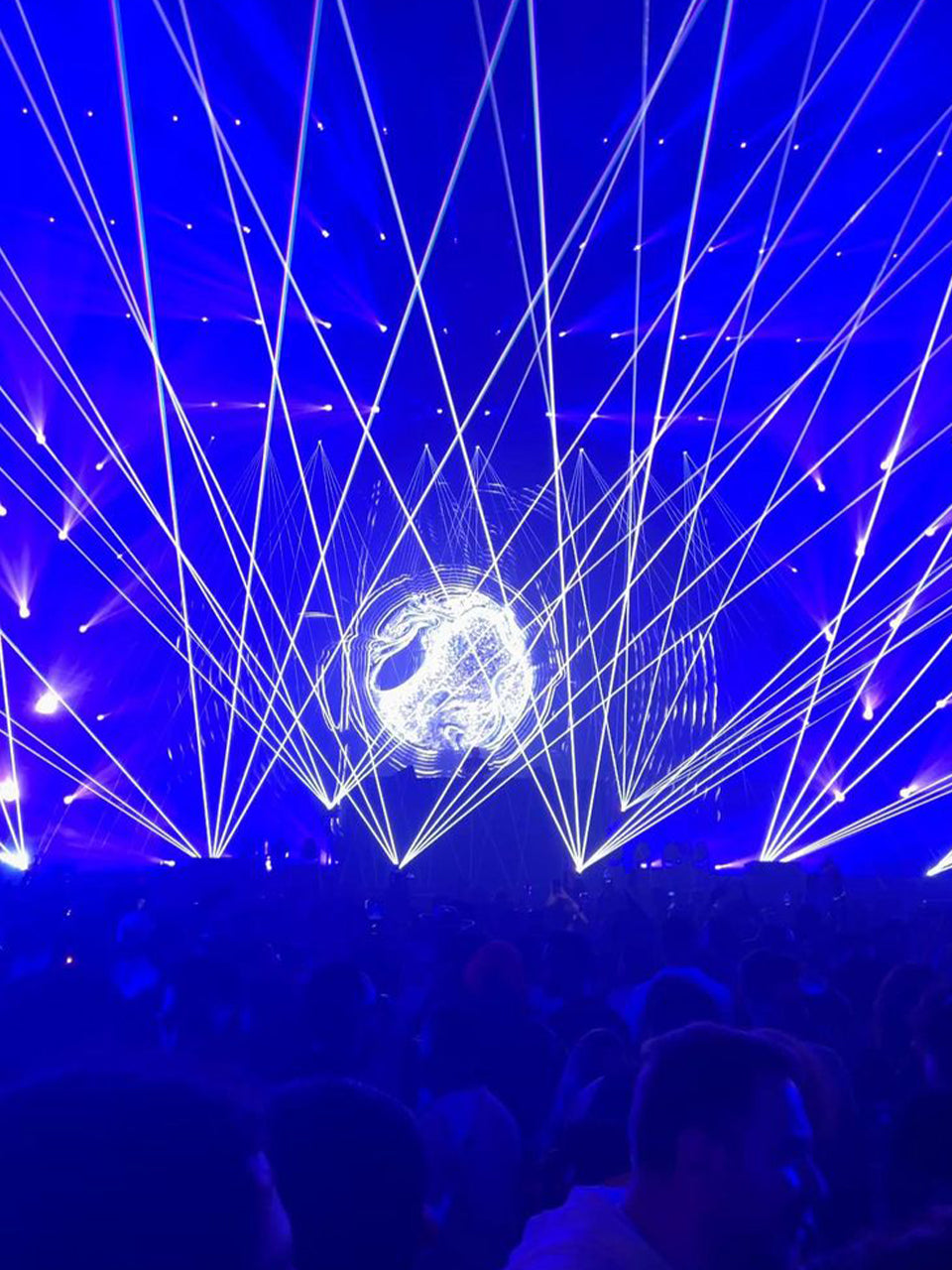

From Dance Floors to Mega Stages
Whether you’re programming moving lights for stage in a theater, setting up mover lights for a packed nightclub, or building a multi-fixture rig for a stadium show, the MFY delivers.
It’s built for versatility, giving you high-output precision for any setup—club nights, concerts, festivals, or even corporate productions.
If you want a moving head laser light that can handle both the creative demands of a designer and the reliability needs of a production crew, this is it.
Specifications
Rated voltage
AC100~240V 50/60Hz
Power consumption:
Less Than 100W
Scanner
2W-3W 25kpps, 4W 30kpps
Scan Angle
max±30°
Input signal
±5V;Linearity distortion less than 2%
Motor
3 phase 42 motor 2pcs
X axis
540° rotation
Y axis
270° rotation
Modulation
analog
Beam diameter and divergence
3*6.5mm;1.5mrad
Control mode
music(black out)/ automatic/master-slave/DMX512(6/40CH)/ILDA
Demonstration interface

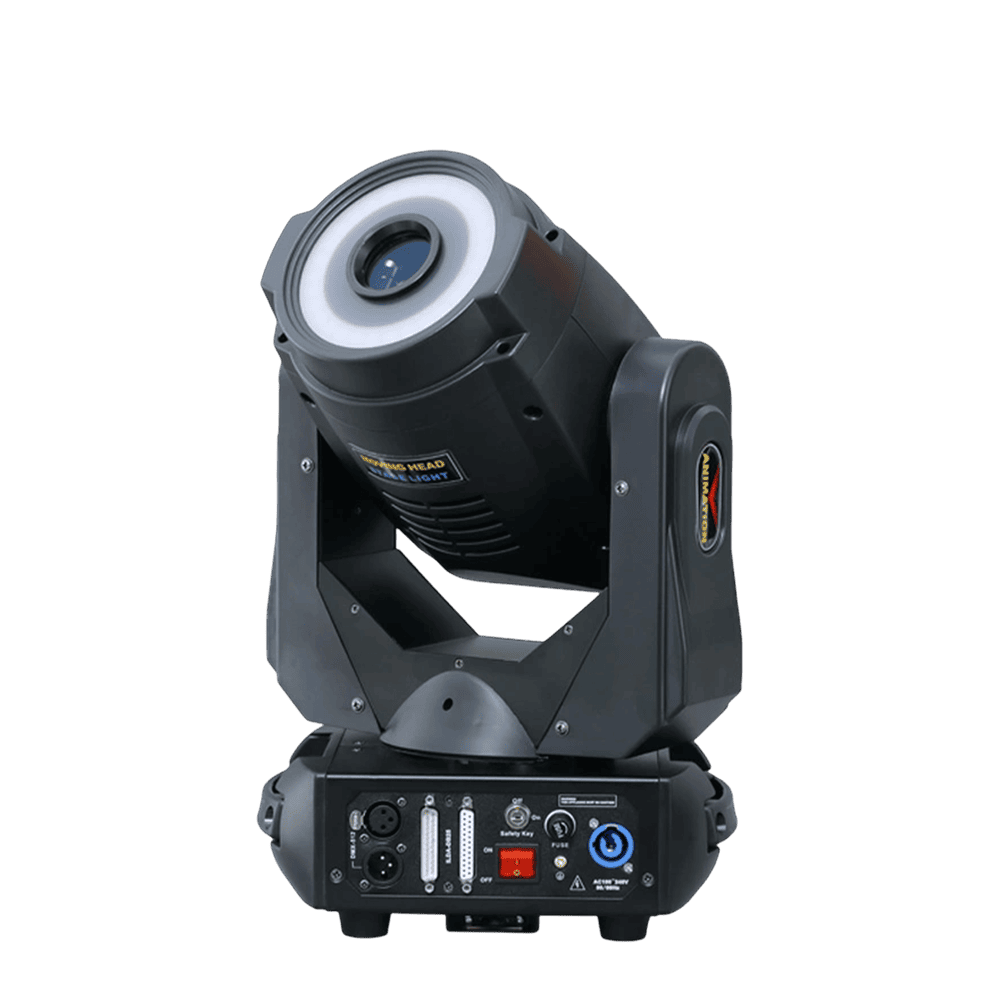

3 pin DMX512/25DB ILDA
Demonstration effect
built-in 140 pattern and 5 pages of animation
DMX effect
Single pattern mode, and with the function of unique blanking,strobe,rotation, movement, billowing, zoom,write in,speed and color etc.
Operating requirement
dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light.
Packing
Carton or Flight case
Frequently Asked Questions
Q1: What is the power output of the MIYA MFY moving head laser light?
A1: It delivers a full-color 3 watt RGB laser output (700mW Red, 900mW Green, 1.4W Blue) for bright, vivid moving laser light effects ideal for clubs, concerts, and stage shows.
Q2: Can I control the laser effects with DMX?
A2: Yes, this DMX moving head laser supports DMX512, ILDA, music control, and master-slave modes, giving you complete flexibility to sync with other moving head lights and stage gear.
Q3: Is this laser light suitable for professional events?
A3: Absolutely. The laser beam moving head design, 540° pan, 270° tilt, and 140 built-in patterns make it perfect for DJs, weddings, festivals, and any laser light projector stage setup.
Q4: How portable is the MIYA MFY moving head laser?
A4: It comes with a rugged 2-in-1 flight case, making it easy to transport between venues. This moving head laser light is compact yet powerful, ideal for touring DJs or event companies.
Learn more
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
Laser Power
RGB 5W/10W/15W
Laser wavelength
Red 638nm / Green 520nm / Blue 450nm
Beam Divergence
<1.3mrad（sharp and precise projection）
Scanning System
20K–30KPPS high-speed galvo scanning
Power Supply
AC110/220V, 50–60Hz ±10%
Control Modes
ILDA / DMX512 / Auto / Master–Slave
Rated Power Consumption
Max 300W
Modulation Type
Analog or TTL modulation
Laser Type
Imported semiconductor solid-state laser
Beam Diameter at Aperture
<7mm
Control Interface
RJ45 ILDA / DMX512, compatible with Pangolin, Tiger, Pearl, MA controllers
Safety Functions
One-beam protection, auto shutoff when signal lost
Working Environment
Indoor/Outdoor
Video
PRODUCT DETAILS/FEATURES
Product Advantages
Seamless App Control Anywhere
Control your professional laser light projector right from your phone using the LightELF app (iOS & Android). No DMX console needed—customize laser patterns, brightness, and animation settings on the fly, perfect for parties, weddings, or backyard displays.
IP66 Waterproof for Any Weather
Built with a rugged IP66-rated shell, this waterproof light is ready for rain, humidity, and outdoor use. Whether it’s a summer celebration or winter holiday event, it works flawlessly all year round.
High-Powered Full Color Output
Featuring up to 15W RGB power with a beam divergence under 1.3mrad, this custom laser light projector delivers bright, clean, and vivid beams that cut through fog and darkness—ideal for open-air shows or indoor use.
Smooth & Sharp Animated Laser Beam
Equipped with 30KPPS scanning, the MA3 produces ultra-smooth motion for logos, text, or animation. It's a true animated laser beam system designed to impress at weddings, DJ parties, and live shows.
Multiple Control Modes Built In
Choose from DMX, ILDA, auto, or sound activation modes. Whether you’re syncing with music or setting up a timed show, this laser show projector adapts to every setup with ease.
Preloaded Patterns for Instant Use
Comes with built-in animation and wedding-themed presets, so you can start your laser light show right away—no programming needed. Great for first-time users looking for easy, high-impact visual effects.
Product Overview
Built for Outdoor Fun, Rain or Shine
The MIYA MA3 Series is a professional laser light projector built to handle real weather. With its IP66 waterproof light housing, it stands up to rain, dust, and outdoor conditions—perfect for outdoor lasers at weddings, parties, or seasonal events. Whether you're planning a backyard gathering or a large event, this wedding light projector is easy to set up and instantly elevates any atmosphere.
Vivid Animated Beams with Pro-Level Clarity
Featuring up to 15W RGB power and crisp animated laser beam effects, the MA3 delivers stunning visuals across any venue. Thanks to its high-speed 30K scanning, this animated projector keeps graphics, names, or patterns looking smooth and sharp. Whether you’re hosting a celebration or building a custom laser light show, this custom laser light projector makes a bold impact.
Simple Setup with Flexible Control
This laser show projector puts full control at your fingertips—use DMX, sound activation, auto-play, or manage everything from your phone with the mobile app (iOS & Android). Whether you're creating a dance floor vibe or designing a personalized projection for a wedding, the MA3 makes it easy. It’s the perfect outdoor show laser for anyone who wants high-end effects without the complicated setup.
Scene Display
Clubs and Bars
Wedding Events
Building Projection
Outdoor Laser Shows
Event Parties
FAQ
Q1: Can I use the MA3 laser projector outdoors year-round?
Yes! The MA3 Series is built with an IP66-rated waterproof housing, making it perfect for outdoor use in all weather conditions—rain, dust, even humidity. Great for holiday shows, weddings, or outdoor events.
Q2: Does it require a DMX console to operate?
Not necessarily. While it supports DMX512 and ILDA for advanced setups, you can also control it using auto mode, sound mode, or via the LightELF app on your phone—no console required.
Q3: Is this projector bright enough for large spaces?
Absolutely. With up to 15W of full-color RGB laser power and a beam divergence of less than 1.3mrad, it projects vivid, high-impact visuals even across medium to large venues.
Q4: What kind of visuals or patterns can it create?
The MA3 supports animated laser beams, custom logos, text, and over 1,500 built-in gobos. Whether you’re planning a wedding, concert, or brand activation, it’s a powerful tool for eye-catching laser light shows.
