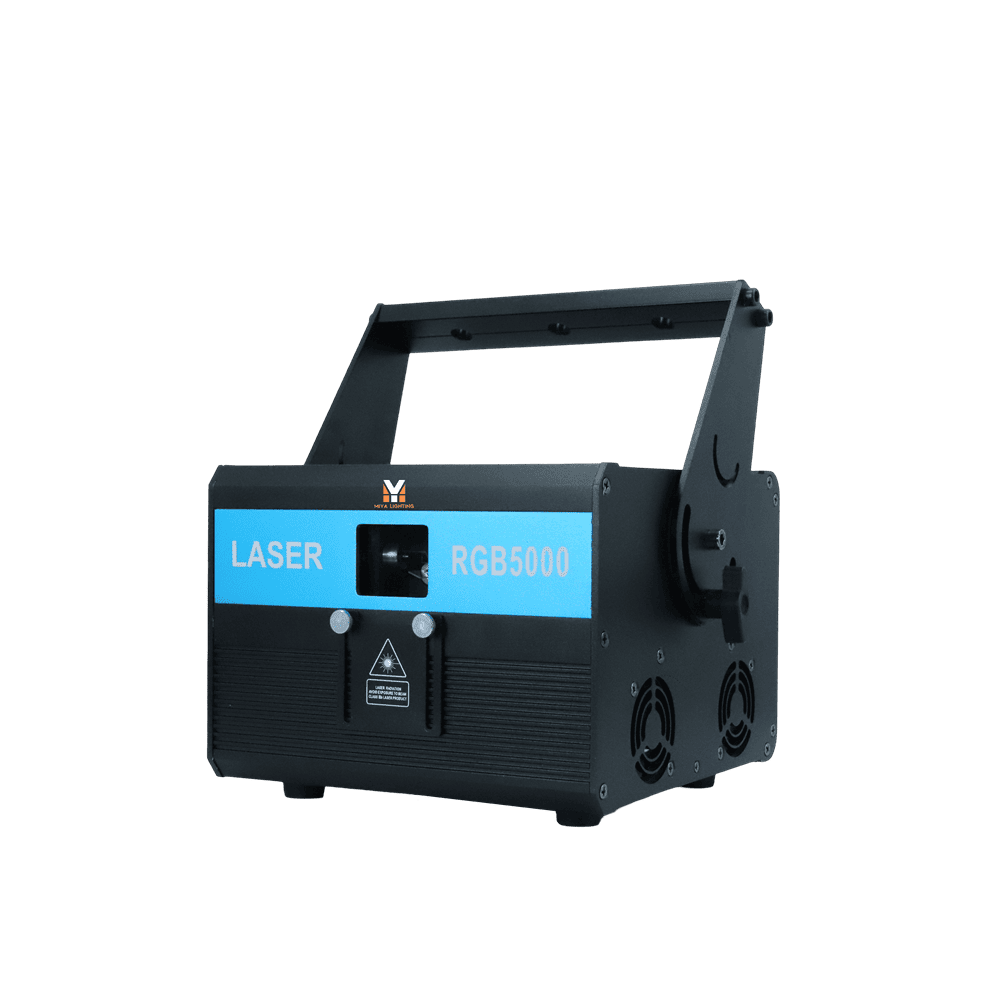

Professional 5W RGB Animation Laser Projector DMX ILDA for DJ Club Lighting
Learn more
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
LS801
AC 100V–230V, 50–60Hz ±10%
180W
Semiconductor laser
TTL modulation
<1.3 mrad
5W (Green 1.5W / Red 1.5W / Blue 2W)
Full color (RGB)
200+ built-in pattern effects
Galvo scanning system – 20 KPPS
Full-color laser lines and full-color laser patterns. Supports external QuickShow software for various animation programs.
Sound active, Auto run, DMX512, Master/Slave, ILDA (PC software interface)
16CH / 36CH optional
Indoor use
Large bars, nightclubs, entertainment venues, etc.
21*22*16cm
3.75 kg
36x33x34CM
5.35 KG
Video
PRODUCT DETAILS/FEATURES
Product Advantages
Product Overview
Scene Display
FAQ
Q1: What is the safety rating of this laser light? Is it safe to use in a bar?
This is a Class 4 high-power laser, compliant with IEC 60825. For safe bar use: keep beams 3m above eye level, wear RGB-rated laser goggles, and use an emergency stop with single-beam protection enabled.
Q2: Can I use multiple laser units at the same time? Will beams interfere or cause safety issues?
A: Yes, multiple units can be used simultaneously via master-slave mode, which keeps all beams synchronized. With a DMX512 controller, beam direction and angles are precisely controlled to remain above audience level, ensuring both performance consistency and safety.
Q3: Can this laser light work with my existing stage lights (like moving heads and PAR lights)?
A: Absolutely. The laser supports the DMX512 universal protocol, so it can easily integrate with your current lighting system. This enables synchronized activation and linked effects with other lights, delivering a cohesive, professional laser light show.
Q4: Does it support custom animation and pattern programming? Is software included?
A: Yes. It supports custom laser patterns via ILDA interface using QuickShow software, which is free if you own FB3/FB4 hardware. You can upload logos, themed visuals, or create animated paths—ideal for branding and special events.
Q5: Is the LS801 easy to install in a bar or club setting?
A: Yes. The compact design (21×21.5×15 cm, 5 kg) allows easy installation by one person. It can be securely mounted on trusses, tabletops, or wall corners, fitting well in most bar environments without taking up space.
Q6: Is 5W laser power enough for a large venue (over 200㎡)?
A: Yes. The compact design (21×21.5×15 cm, 5 kg) allows easy installation by one person. It can be securely mounted on trusses, tabletops, or wall corners, fitting well in most bar environments without taking up space.
Q7: Does this unit require a power transformer for use in the US or Europe?
A: No transformer needed. It supports AC100V~230V (50/60Hz), compatible with US 110V and EU 230V power systems. Just plug and play—perfect for international setups.
Q8: What warranty is included? How do I get support for technical issues?
A: The unit comes with a 1-year warranty. For non-human-caused failures, we provide free parts replacement or repair service. Remote technical support is also available to help you troubleshoot lighting functions or software connections quickly.
